Unit CamS3 Wi-Fi Camera 5MP
Available with a lead time
Expect dispatch between Nov 29 and Dec 10
Quantity Discounts:
- 10-25 $38.97 (exc GST)
- 25+ $38.17 (exc GST)

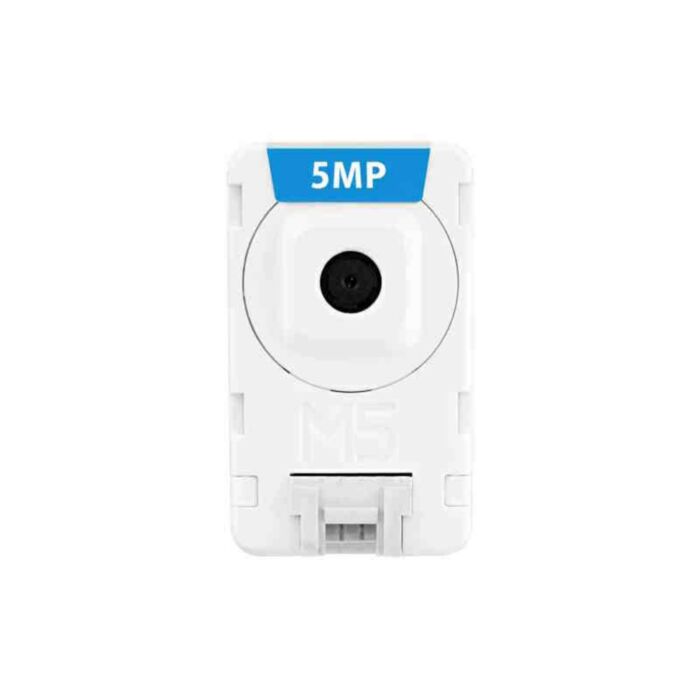

CAMS3 5MP Unit is a streamlined camera module based on the ESP32S3, supporting WiFi cloud image transmission. It features 8M PSRAM and 16M Flash memory, paired with a custom 5-megapixel camera (PY260) that has a DFOV of 88° and can capture photos at a maximum resolution of 2592x1944. The unit includes a built-in Micro SD card slot for storing images and other data. An integrated PDM microphone allows for sound recording. The HY2.0-4P port at the bottom exposes the S3 internal D+/D- pins, supporting firmware updates or USB serial communication through the M5Grove2USB-C module. Two 1x3 pin headers on the board allow for ESP32S3 program downloading. The factory firmware provides a complete image capture and upload function called EZData, enabling users to achieve remote, free image monitoring through simple configuration. This product is suitable for remote monitoring, time-lapse photography, industrial automation, and various other applications.
To download the program: When using the Grove2USB-C provided with the product packaging, before powering on, short-circuit the G0 and GND pins of the pin header with the provided male-to-male breadboard wire to enter download mode. Then, you can use Grove2USB-C to connect and download.
Features
- Based on the ESP32-S3-WROOM-1-N16R8 module, supports WiFi.
- WiFi cloud EZDATA or single-port image data transmission.
- Equipped with a 5-megapixel camera (PY260).
- Built-in Micro SD card slot.
- Built-in PDM microphone, supports audio recording function.
- Built-in programmable indicator light.
Includes
- 1x CAMS3 5MP Unit
- 1x Grove2USB-C
- 2x Male-to-Male Breadboard Wires
- 1x HY2.0-4P Grove Cable (20cm)
- 1x LEGO-Compatible Component
Applications
- Remote Monitoring
- Time-lapse Photography
- Industrial Automation
Specification
| Resources | Parameters |
|---|---|
| ESP32-S3-WROOM-1-N16R8 | Dual-core 240 MHz @ Supports WiFi, module antenna integrated |
| PSRAM | 8M PSRAM |
| Flash | 16M Flash |
| Camera | 5M Pixel @ PY260 |
| Supported Output Formats | JPEG |
| DFOV | 88° |
| MIC | PDM Microphone @ MSM1261D4030HCPM |
| Supports memory card types | Micro SD card |
| Operating Temperature | 0-40°C |
| Product Size | 40*24*11mm |
| Package Size | 136*92*20mm |
| Product Weight | 10.8g |
| Package Weight | 18.9g |
