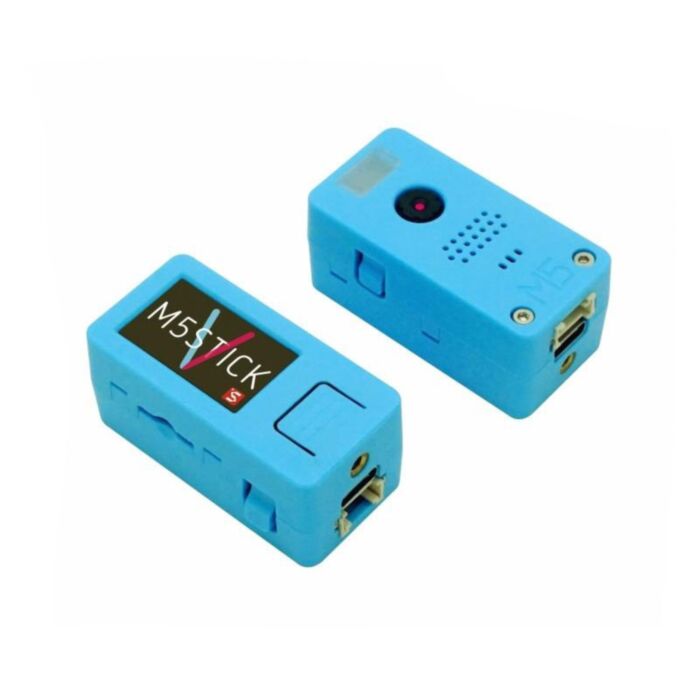

M5StickV K210 AI Camera (Without Wifi)

SKU: CE07683 Brand: M5Stack

M5Stack recently launched the new AIoT(AI+IoT) Camera powered by Kendryte K210 -an edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and advanced neural network processor..

$81.80 AUD, inc GST

$74.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

6-12 $71.39 (exc GST)
12+ $69.15 (exc GST)

M5Stack recently launched the new AIoT(AI+IoT) Camera powered by Kendryte K210 -an edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and advanced neural network processor..

M5StickV AI Camera possesses machine vision capabilities, equips OmniVision OV7740 image sensor, adopts OmniPixel®3-HS technology, provides optimum low light sensitivity, supports various vision identification capabilities. (e.g. Real-time acquisition of the size, type and coordinates of the detected target ) In addition to an OV7740 sensor, M5StickV features more hardware resources such as a speaker with built-in I2S Class-D DAC, IPS screen, 6-axis IMU, 200mAh Li-po battery, and more.

It is able to perform convolutional neural network calculations at low power consumption, so M5StickV will be a good zero-threshold machine vision embedded solution. It is in support with MicroPython, which makes your code to be more concise when you use M5stick-V for programming.

Power switch operation:

Power on :Long press power button for 2 seconds
Power off :Short press power button for 6 seconds

Features

Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
Dual Independent Double Precision FPU
Neural Network Processor(KPU) / 0.8Tops
Field-Programmable IO Array (FPIOA)
Dual hardware 512-point 16bit Complex FFT
SPI, I2C, UART, I2S, RTC, PWM, Timer Support
AES, SHA256 Accelerator
Direct Memory Access Controller (DMAC)
Micropython Support
Firmware encryption support
Case Material: PC + ABS

Include

1x M5StickV
1x USB Type-C(100cm)
1x Bracket
1x hexagon wrench

Applications

Face recognition/detection
Object detection/classification
Obtaining size and coordinates of the target in real-time
Obtaining the type of detected target in real-time
Shape recognition
Video/Display
Game simulator

Specification

Kendryte K210 Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
SRAM 8MiB
Flash 16M
Power input 5V @ 500mA
KPU Parameter size of neural network 5.5MiB - 5.9MiB
Port TypeC x 1, GROVE(I2C+I/0+UART) x 1
RGB LED RGBW x 1
Button Custom button x 2
IPS screen 1.14 TFT, 135*240, ST7789
Camera OV7740
FOV 55deg
PMU AXP192
Battery 200mAh
External storage TF-card(microSD)
MEMS MPU6886
Net weight 23g
Gross weight 82g
Product Size 48*24*22mm
Package Size 144*44*43mm
Case Material Plastic ( PC )
