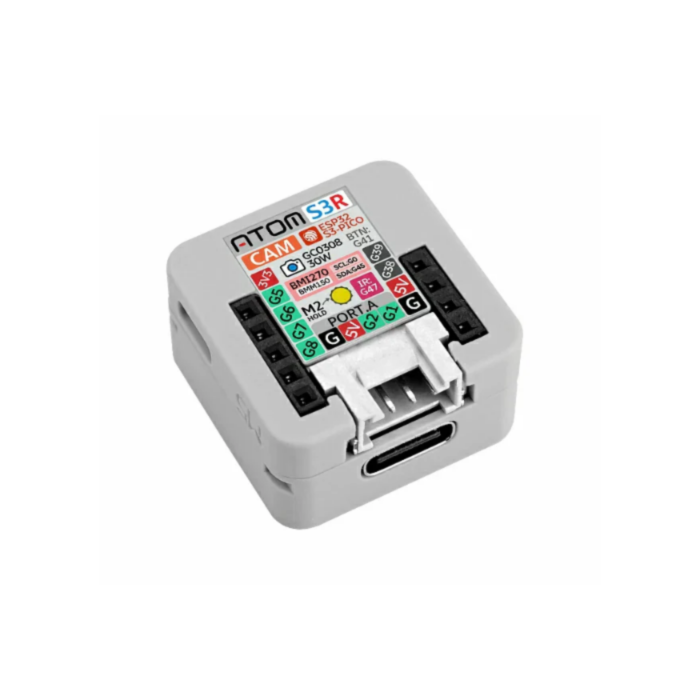

AtomS3R WiFi Camera Kit with Sensors

SKU: CE10130 Brand: M5Stack

Discover the AtomS3R WiFi Camera Kit, a compact programmable controller featuring ESP32-S3, 0.3MP camera, 9-axis sensors, and 8MB FLASH/PSRAM, perfect for IoT monitoring and educational development.

$51.25 AUD, inc GST

$46.59 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 23 and May 05

Quantity Discounts:

6+ $44.73 (exc GST)
12+ $43.33 (exc GST)

Experience advanced IoT monitoring and educational development with the AtomS3R WiFi Camera Kit, a compact yet powerful programmable controller featuring ESP32-S3 technology, integrated camera capabilities, and comprehensive sensor systems. This versatile device combines WiFi connectivity, image capture, and motion sensing in a remarkably small 24x24x13.5mm form factor.

Key Features

High-performance ESP32-S3-PICO-1-N8R8 controller with built-in WiFi
Integrated 0.3MP GC0308 camera with glass protection cover
Advanced 9-axis sensor system combining BMI270 and BMM150
Enhanced 3D antenna design for superior WiFi stability
Pre-installed UVC firmware for driver-free USB camera functionality
Expandable through HY2.0-4P port and 6 GPIO pins
Comprehensive development platform support including Arduino, UIFlow, and Micropython

Technical Specifications

Component	Specification
Processor	ESP32-S3-PICO-1-N8R8 (Dual-core Xtensa LX7, up to 240MHz)
Memory	8MB FLASH, 8MB PSRAM
Camera	0.3MP GC0308, 30fps max frame rate
Sensors	BMI270 6-axis + BMM150 3-axis geomagnetic
Operating Current	Camera: 21.02mA, IMU: 99.25mA, IR: 100.40mA
Dimensions	24x24x13.5mm

How to Use

The AtomS3R Camera Kit can be integrated into projects using multiple development approaches:

Connect via USB-C for power and programming
Utilize the pre-installed UVC firmware for immediate USB camera functionality
Access sensor data through I2C interface (BMI270 at address 0x68)
Expand functionality using the HY2.0-4P port and GPIO pins

For enhanced monitoring capabilities, pair with the Waveshare Industrial 6-Channel ESP32-S3 WiFi Relay Module for remote control applications, or the M5Stack Unit CamS3 Wi-Fi Camera 5MP for higher resolution imaging requirements.

What's in the Box

1x AtomS3R Camera Module
Integrated camera and sensor system
Pre-installed UVC firmware

Compatibility

Development Platforms:
- Arduino IDE
- UIFlow
- Micropython
Power Supply: 5V DC via Type-C interface
Operating Temperature: 0°C to 40°C

Additional Resources

Complete Documentation

About M5Stack

M5Stack specializes in developing modular electronic solutions for IoT and educational applications. Their products are designed with a focus on ease of use, reliability, and expandability, making them ideal for both professional development and educational environments. The company's commitment to open-source hardware and comprehensive documentation supports a growing community of developers and educators worldwide.

This product is listed in:

Development Boards>Kits
Components & Parts>Microcontrollers>ESP32 Modules
Sensors>Camera
