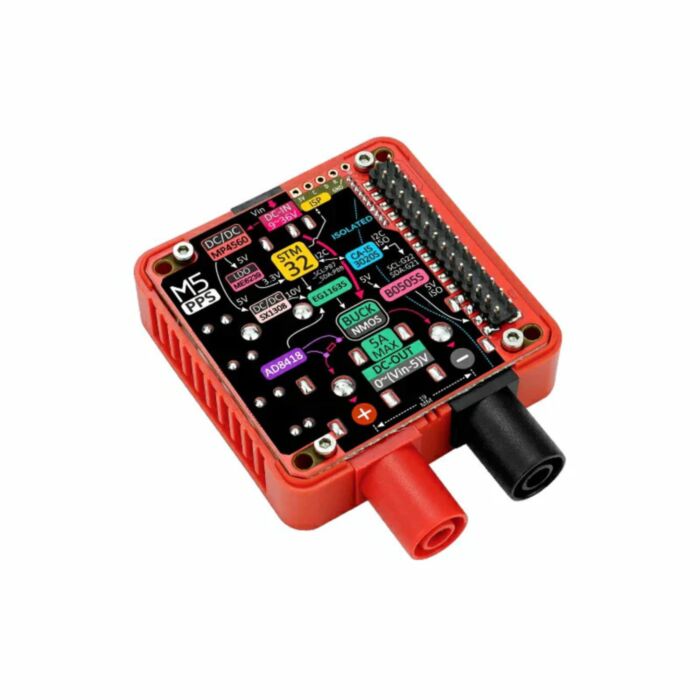

M5Stack Programmable DC Power Supply Module 30V/5A

SKU: CE010068 Brand: M5Stack

Discover the M5Stack Programmable DC Power Supply Module offering precise 0.5-30V/5A output with isolation protection, perfect for scientific research, embedded development, and DIY electronics projects requiring adjustable power up to 100W.

$60.45 AUD, inc GST

$54.95 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 11

Quantity Discounts:

6-12 $52.75 (exc GST)
12+ $51.11 (exc GST)

The M5Stack Programmable DC Power Supply Module offers precision voltage and current control in a compact, industrial-grade package. This versatile module delivers adjustable power from 0.5-30V at up to 5A with exceptional accuracy of ±30mV/5mA, making it ideal for precise electronic testing and development work.

Key Features

High-precision output range of 0.5-30V DC at 0-5A with ±30mV/5mA accuracy
Rated output power of 100W (peak 150W) using efficient STEP-DOWN buck technology
Integrated electrical isolation for enhanced safety through CA-IS3020S and B0505S-1WR3 chips
Factory-calibrated across full range for guaranteed accuracy
Wide input voltage range of 9-36V DC
Professional-grade 4mm banana plug sockets with 19mm spacing
Built-in STM32 control processor for precise closed-loop control
AD8418 high-resolution current amplifier for accurate current monitoring

How to Use

Setup is straightforward with this programmable power supply module:

Connect a compatible DC power adapter (9-36V) to the input
Mount the module to your M5Stack Core2 or other compatible M5Stack controller
Connect your load to the 4mm banana plug sockets, observing correct polarity
Program desired voltage and current limits through the M5Stack interface
Monitor real-time voltage and current readings through the integrated feedback system

For extended operation, consider adding the M5Stack Battery Module to your setup for portable power supply capabilities.

What's in the Box

1x M5Stack Programmable DC Power Supply Module (Module13.2-PPS)

Compatibility

This module is designed to work seamlessly with:

M5Stack Core series
M5Stack Core2 series
M5Stack CoreS3 series

For optimal performance, pair with a 12V DC 10A Power Supply to ensure sufficient input power for full output capability.

Technical Specifications

Specification	Value
Input Voltage Range	DC 9-36V
Output Voltage Range	0.5-30V DC
Output Current Range	0-5A
Maximum Power Output	100W (150W peak)
Accuracy	±30mV/5mA
Operating Temperature	0-40°C
I2C Address	0x35
Dimensions	68.5 x 54 x 19.7mm

Additional Resources

Technical Documentation

About M5Stack

M5Stack specialises in developing modular electronic development tools and IoT devices. Their products are renowned for their industrial-grade build quality, plug-and-play functionality, and comprehensive ecosystem of compatible components. M5Stack's commitment to open-source development and educational applications has made them a trusted choice in both professional and educational environments.

This product is listed in:

Power & Batteries>Bench Power Supplies
Test Equipment>Bench Power Supplies
