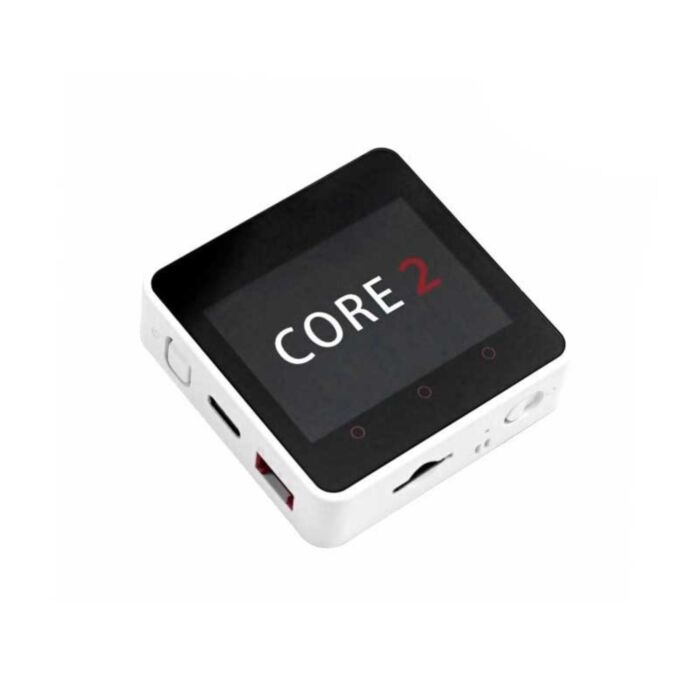

M5Stack Core2 ESP32 IoT Development Kit

Rating:

92% of 100

SKU: CE07785 Brand: M5Stack

M5Core2 is the second generation core device in the M5Stack development kit series, which further enhances the functions of the original generation of cores.

$98.55 AUD, inc GST

$89.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

Quantity Discounts:

6-12 $86.01 (exc GST)
12+ $83.32 (exc GST)

M5Core2 is the second generation core device in the M5Stack development kit series, which further enhances the functions of the original generation of cores.

The MCU is an ESP32 model D0WDQ6-V3 and has dual core Xtensa® 32-bit 240Mhz LX6 processors that can be controlled separately. WiFi and Bluetooth are supported as standard and it includes an on board 16MB Flash and 8MB PSRAM, USB TYPE-C interface for charging, downloading of programs and serial communication, a 2.0-inch integrated capacitive touch screen, and a built-in vibration motor.

M5Core2 also features a built-in RTC module which can provide accurate timing. The power supply is managed by an AXP192 power management chip, which can effectively control the power consumption of the base and a built-in green LED power indicator helps to notify the user of battery level. The battery capacity has been upgraded to 390mAh, which can power the core for much longer than the previous model.

The M5Core2 retains the TF-card(microSD) slot and speakers. However, in order to ensure higher quality sound output, the I2S digital audio interface power amplifier chip is used to effectively prevent signal distortion. There are independent power and reset buttons on the left side and bottom of the base.

The 3 icons on the front of the screen are capacitive buttons which are programmable. There is a small expansion board on the back of the base with a 6-axis IMU sensor and microphone. The development platform and programming language supported by M5Stack Core2: Arduino, UIFlow (using Blockly, MicroPython language) No matter what level of your development and programming skills, M5Stack will help You gradually turn your ideas into reality.

Power on/off:

Power on: click the power button
Power off: press the power button for 6s
Restart: Click the RST button at the bottom

To stack M5Core2 with M5 modules, you need to remove/omit the battery bottom of Core2; If you need to keep I2S Mic, IMU and Battery functions, a M5GO Bottom2 is needed.

Product Features

ESP32-based, built-in Bluetooth,WiFi
16M Flash,8M PSRAM
Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
TF card slot (16G Maximum size)
Built-in lithium battery, equipped with power management chip
Independent small board built-in 6-axis IMU, PDM microphone
M-Bus Socket & Pins
Program Platform: UIFlow, MicroPython, Arduino

Include

1x M5Stack Core2
1x Type-C USB(20cm)

Specification

ESP32-D0WDQ6-V3: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash: 16MB
PSRAM: 8MB
Input Voltage: 5V @ 500mA
Interface: TypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS LCD Screen: 2.0"@320*240 ILI9342C
Touch Screen: FT6336U
Speaker: 1W-0928
LED: Green power indicator light
Button: Power button, RST button, Virtual screen button*3
Vibration reminder: Vibration motor
MIC: SPM1423
I2S Power Amplifier: NS4168
6-axis IMU: MPU6886
RTC: BM8563
PMU: AXP192
USB Chip: CP2104
DC-DC Boost: SY7088
TF card slot: 16G Max.
Lithium Battery: 390mAh @ 3.7V
Antenna: 2.4G 3D antenna
Operating temperature: 32°F to 104°F ( 0°C to 40°C )
Net Weight: 52g
Gross Weight: 70g
Product Size: 54 x 54 x 16mm
Package Size: 75 x 60 x 20mm
Case Material: Plastic ( PC )
