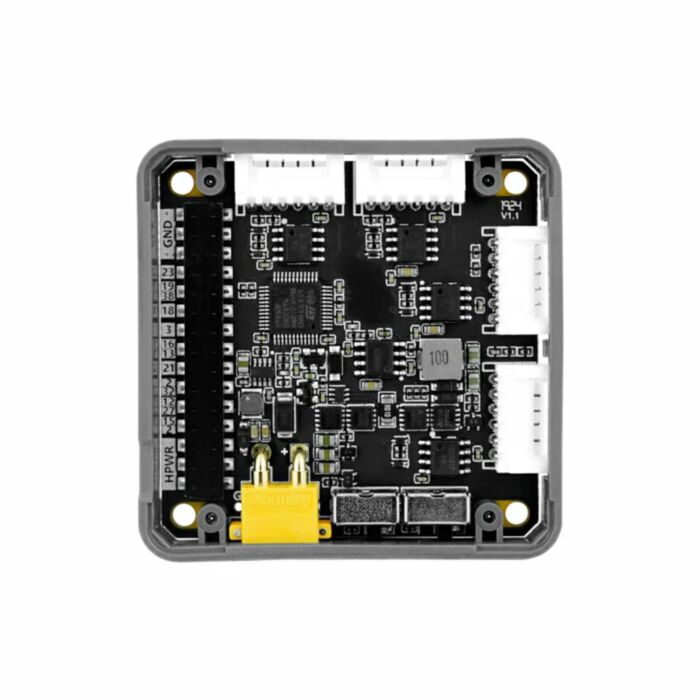

M5Stack 4-Channel Smart Motor Driver STM32

SKU: CE010057 Brand: M5Stack

Explore the M5Stack 4-Channel Smart Motor Driver STM32, a versatile encoder motor control module featuring STM32+BL5617 technology, supporting multiple control modes and real-time power monitoring for robotics and automation applications.

$37.75 AUD, inc GST

$34.32 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 13

Quantity Discounts:

10-25 $33.29 (exc GST)
25+ $32.60 (exc GST)

The M5Stack 4-Channel Smart Motor Driver STM32 represents a significant advancement in motor control technology, combining precision engineering with versatile functionality. This sophisticated module integrates STM32+BL5617 technology to deliver exceptional performance across multiple control modes, making it an ideal solution for robotics, automation systems, and precision motion control applications.

Key Features & Technical Specifications

Advanced STM32+BL5617 motor driver solution supporting up to 4 encoder motors
Multiple control modes including duty cycle, absolute position positioning, and speed adjustment
Real-time power monitoring through integrated INA199 system
Maximum current support: 3.0A per channel
Power capacity: 10W maximum
Dual power input options: DC 5V or external DC 6-12V
I2C communication with configurable slave address (default: 0x24)
Operating temperature range: 0-40°C
Compact dimensions: 54 x 54 x 13.1mm

How to Use

Implementation of the 4-Channel Smart Motor Driver begins with power selection - either through the standard DC 5V input or external DC 6-12V power source via the included DC5521 to XT30 adapter cable. The module connects through I2C communication, enabling straightforward integration with existing systems.

For enhanced functionality, consider pairing with the M5Stack Stepmotor Module with MEGA328P (DRV8825) for additional stepper motor control capabilities, or the M5Stack 6060-PUSH Linear Motion Control for linear motion applications.

What's in the Box

1x 4EncoderMotor Module
1x DC5521 Female To XT30 Female Cable
4x KF2510-2P 100mm Cables

Compatibility

The module is designed to work seamlessly with:

DC encoder motors with AB pulse signals
M5Stack core development platforms
Systems requiring I2C communication
Projects operating within 6-12V power specifications

Applications

Robotic arm and joint control systems
Automated manufacturing equipment
Laboratory instrumentation
Smart vehicle prototyping
Educational robotics platforms
Industrial automation systems

Additional Resources

Comprehensive documentation available at the official M5Stack documentation portal

About M5Stack

M5Stack specialises in developing modular, stackable electronic components and development tools. Their product ecosystem is designed to simplify the prototyping and development process while maintaining professional-grade quality and reliability. The company's commitment to open-source development and educational support has established them as a trusted name in the electronics and maker community.
