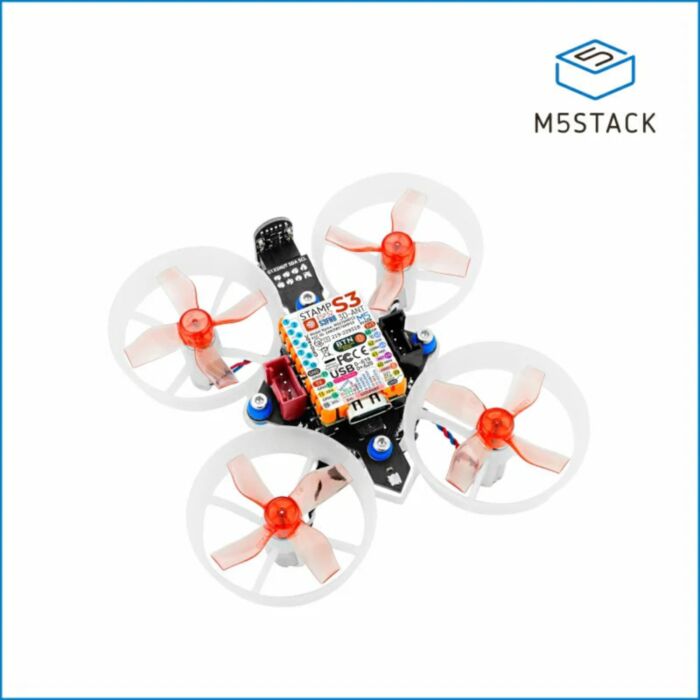

M5Stamp Fly with M5StampS3

SKU: CE09944 Brand: M5Stack

M5Stamp Fly is a programmable open-source quadcopter kit, featuring the StampS3 as the main controller.

$112.47 AUD, inc GST

$102.25 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 07 and Apr 17

M5Stamp Fly is a programmable open-source quadcopter kit, featuring the StampS3 as the main controller. It integrates a BMI270 6-axis gyroscope and a BMM150 3-axis magnetometer for attitude and direction detection. The BMP280 barometric pressure sensor and two VL53L3 distance sensors enable precise altitude hold and obstacle avoidance. The PMW3901MB-TXQT optical flow sensor provides displacement detection. The kit includes a buzzer, a reset button, and WS2812 RGB LEDs for interaction and status indication. It is equipped with a 300mAh high-voltage battery and four high-speed coreless motors. The PCB features an INA3221AIRGVR for real-time current/voltage monitoring and has two Grove connectors for additional sensors and peripherals. Preloaded with debugging firmware, the Stamp Fly can be controlled using an Atom Joystick via the ESP-NOW protocol. Users can choose between automatic and manual modes, allowing for easy implementation of functions like precise hovering and flips. The firmware source code is open-source, making the product suitable for education, research, and various drone development projects.

Product Features

M5StampS3 as the main controller
BMP280 for barometric pressure detection
VL53L3 distance sensors for altitude hold and obstacle avoidance
6-axis attitude sensor
3-axis magnetometer for direction detection
Optical flow detection for hovering and displacement detection
Buzzer
300mAh high-voltage battery
Current and voltage detection
Grove connector expansion

Includes

1x Stamp Fly
1x 300mAh high-voltage lithium battery

Applications

Education
Research
Drone development
DIY projects

Specifications

Specification	Parameter
M5StampS3	ESP32-S3@Xtensa LX7, 8M-FLASH, WiFi, OTG\CDC support
Motor	716-17600kv
Distance Sensor	VL53L3CXV0DH/1 (0x52) @ max 3m
Optical Flow Sensor	PMW3901MB-TXQT
Barometric Sensor	BMP280 (0x76) @ 300-1100hPa
3-axis Magnetometer	BMM150 (0x10)
6-axis IMU Sensor	BMI270
Grove	I2C+UART
Battery	300mAh 1S high-voltage lithium battery
Current/Voltage Detection	INA3221AIRGVR (0x40)
Buzzer	Built-in Passive Buzzer @ 5020
operating temperature	0-40°C
Product Size	81.581.531mm
Packaging Size	1629936mm
Product Weight	36.8g
Packaging Weight	70.7g
