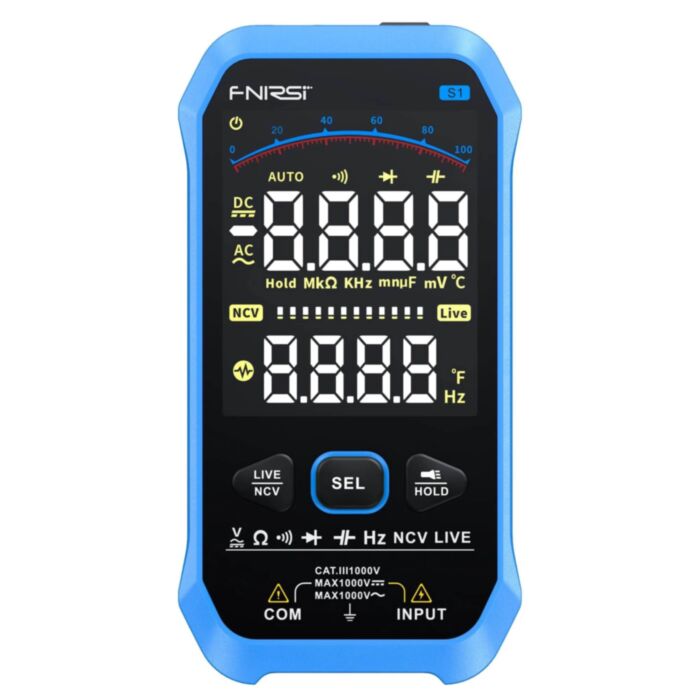

S1 Large Screen Digital Multimeter

SKU: CE10606 Brand: FNIRSI

Streamline your circuit diagnostics without the need for manual dial or tinkering with measurement modes. Level up your toolkit with this modern take on the multimeter.

$48.85 AUD, inc GST

$44.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 17th of Mar

Quantity Discounts:

10+ $42.64 (exc GST)
25+ $41.30 (exc GST)

A smart digital multimeter equipped with a high-contrast 9999-count VA colour LCD, designed for precise, everyday electronic measurements. Functioning as a quick-to-grab diagnostic tool for makers and engineers, it reliably measures AC/DC voltage, resistance, capacitance, and frequency while offering non-contact voltage (NCV) and live wire detection capabilities.

Traditional multimeters often require constant dial adjustments, which can slow down your workflow and risk blowing a fuse if the wrong range or mode is selected. The S1 solves this common pain point with an intelligent auto-measurement system that instantly identifies whether you are probing voltage, checking resistance, or testing continuity, streamlining both benchtop diagnostics and rapid field repairs.

Housed in a robust ABS plastic enclosure, this compact unit feels solid in the hand and features an internal 1000mAh lithium battery to completely eliminate the need for disposable 9V or AA cells.

Key Features

Enjoy rapid, error-free diagnostics with smart auto-measurement that instantly identifies AC/DC voltage, resistance, and continuity without requiring manual dial-switching.
Read measurements easily in any environment—from dimly lit workshops to bright outdoor settings—thanks to the vibrant 9999-count dual-display VA colour screen and integrated flashlight.
Eliminate the hassle of swapping batteries with the built-in 1000mAh rechargeable lithium battery, offering up to 5 hours of continuous runtime via a standard USB-C port.
Achieve highly accurate readings on complex AC signals (such as PWM outputs or inverter drives) with True RMS measurement capabilities.

Technical Specifications

Property	Specification
Display	VA colour LCD, 9999 counts (Dual-display capable)
Power Supply	Built-in 1000mAh rechargeable lithium battery (USB-C, 5V-1A)
AC/DC Voltage Range	0-1000V (True RMS for AC)
Resistance Range	0-100MΩ
Capacitance Range	0-10mF
Frequency Range	0-10MHz
Temperature Range	-20°C to 1000°C
Measurement Rate	Approximately 3 measurements per second
Additional Functions	NCV, Live wire detection, Diode test, Continuity buzzer, Data Hold, Auto-off
Material	ABS plastic
Dimensions	143 mm x 75 mm x 19 mm
Weight	135 g
