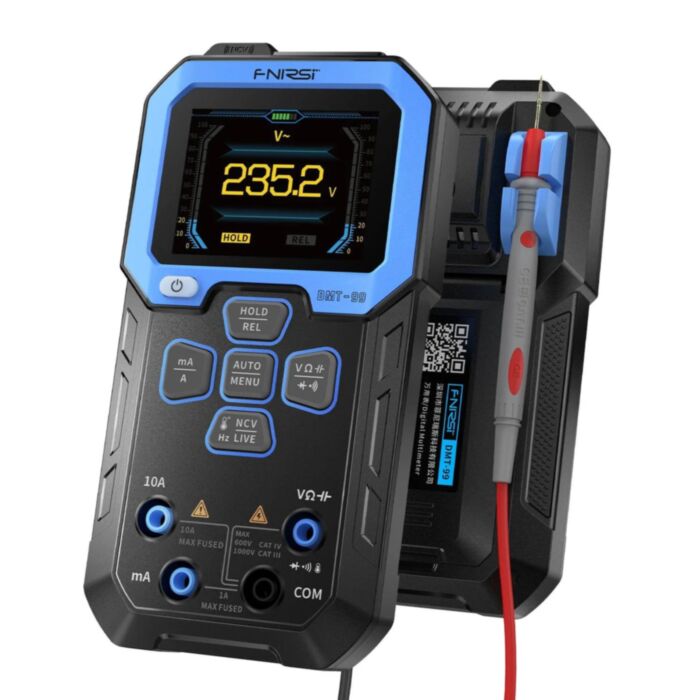

DMT-99 Digital Multimeter

SKU: CE10550 Brand: FNIRSI

Visualise transient signals and log data with precision using the FNIRSI DMT-99 Digital Multimeter. This 10,000-count True RMS tool features a 2.4-inch colour TFT display and real-time curve plotting for advanced circuit diagnostics and monitoring.

$62.64 AUD, inc GST

$62.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

A 10,000-count digital multimeter that brings data visualisation to your handheld toolkit.

Unlike standard multimeters that only show a snapshot value, the DMT-99 features a 2.4-inch full-colour TFT display capable of plotting measurement curves over time. This means you can still perform basic testing and data logging, but also extend a multimeter's capability to see stability and drift that a simple numerical display might miss.

For makers and technicians, spotting slow-moving fluctuations—like battery voltage sag under load or temperature drift—can be frustrating with a standard screen. The DMT-99 solves this with its dedicated "Record" and "Monitor" modes. These allow you to set high/low thresholds with audible alarms for hands-free circuit monitoring, or view a real-time graph to track signal stability over seconds or minutes.

Designed for reliability, the unit is powered by a built-in 1500mAh rechargeable lithium battery, eliminating the need for disposable 9V cells.

Key Features

Visualise signal stability with the "Record Mode" graph, which plots voltage or current trends over time - ideal for spotting voltage sag or irregular sensor drifts (Note: this is a trend logger, not a high-speed oscilloscope).
Monitor hands-free using "Monitor Mode," which lets you set custom maximum and minimum thresholds; the device will sound an alarm if readings drift outside your defined safe limits.
High-resolution readings with 10,000-count True RMS precision provide more granular data than standard 2,000 or 6,000-count meters, essential for sensitive low-voltage electronics.
Streamline operations with Intelligent Auto-Recognition, which automatically detects voltage, resistance, or continuity connections to prevent range selection errors.
Eco-friendly power via the integrated 1500mAh lithium battery (USB-C rechargeable), offering up to 10 hours of runtime and reducing battery waste.
Built-in safety featuring CAT III 1000V protection, dual ceramic fuses, and software-driven anti-burn protection to guard against accidental overloads.

Technical Specifications

Property	Specification
Display Type	2.4" TFT Full-Colour (240 x 320)
Counts	10,000 Counts (True RMS)
Special Modes	Record (Graphing), Monitor (Threshold Alarms)
DC Voltage Range	9.999V / 99.99V / 999.9V (±0.5% + 3)
AC Voltage Range	9.999V / 99.99V / 750.0V (±1.0% + 3)
Current Range (DC/AC)	9999μA to 9.999A (±1.2% - 1.5% + 3)
Resistance Range	999.9Ω to 99.99MΩ (±1.5% + 3)
Capacitance Range	9.999nF to 99.99mF (±2.0% - 5.0% + 20)
Frequency Range	9.999Hz to 9.999MHz (±0.1% + 3)
Temperature Range	-55°C to 1300°C (-67°F to 2372°F)
Power Source	1500mAh Lithium Battery (USB-C Rechargeable)

Notes

Only perform measurements on ELV circuits, and have a licensed electrician perform work on mains or higher voltage circuits.
