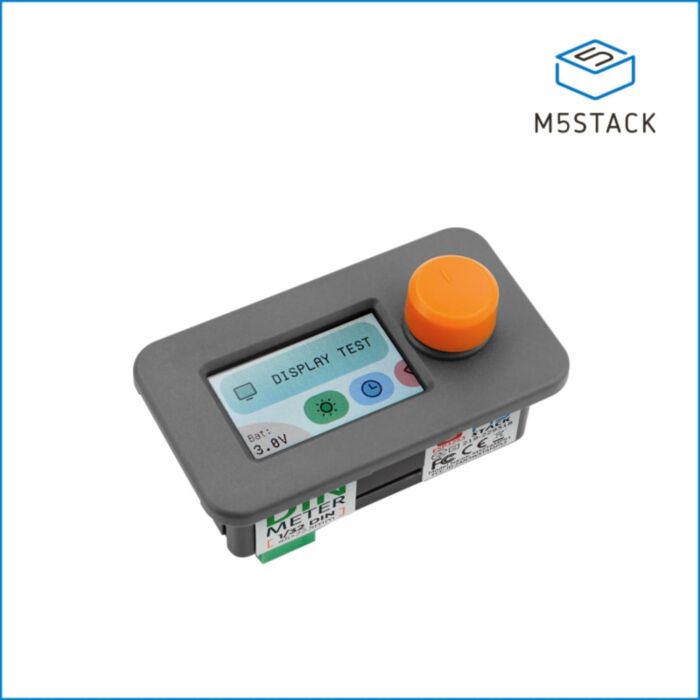

M5Stack DIN IoT Controller & Display Module

SKU: CE10066 Brand: M5Stack
Explore the M5Stack DIN IoT Controller & Display Module, featuring a 1.14" ST7789 screen, ESP32-S3 processor, and rotary encoder for smart home automation, industrial control, and IoT projects with wide voltage input compatibility.
$60.50 AUD, inc GST
$55.00 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 16 and Dec 25

Quantity Discounts:

  • 6-12 $53.31 (exc GST)
  • 12+ $52.21 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The M5Stack DIN IoT Controller & Display Module revolutionizes industrial control and smart automation with its versatile 1/32 DIN standard form factor and powerful ESP32-S3 processor. Featuring a vibrant 1.14-inch ST7789 display and precision rotary encoder, this module seamlessly integrates into both industrial control panels and sophisticated smart home installations.

Key Features

  • 1.14-inch ST7789 high-brightness display for clear visual feedback
  • ESP32-S3 processor with integrated WiFi for IoT connectivity
  • Precision rotary encoder with push-button functionality
  • Wide voltage input range (6-36V DC) for industrial compatibility
  • Built-in RTC circuit for accurate time-keeping
  • Integrated buzzer for audio feedback
  • Multiple power options: USB-C, DC input, or lithium battery
  • Expandable I2C and GPIO capabilities via PORTA and PORTB
  • Standard 1/32 DIN size (45×22.5mm) for panel mounting

How to Use

Installation and operation of the DIN IoT Controller is straightforward:

  • Power-Up: Press the "WAKE" button or utilize the RTC timer for automatic wake-up. Set the HOLD pin (G46) high during initialization to maintain power state.
  • Power-Down: Either press the RST button (when no USB power is present) or programmatically set HOLD (GPIO46) to 0.
  • Programming: To enter download mode, hold the G0 button while powering on the device, then release.
  • Mounting: Fits standard 1/32 DIN panel cutouts, secured with the included back brace.

What's in the Box

  • 1× M5Stack DIN IoT Controller
  • 1× Adhesive mounting paper
  • 1× 250mAh Battery
  • 1× Product tag
  • 1× DC-JACK terminal (6-36V)
  • 1× Back mounting brace

Compatibility

The module supports multiple development platforms:

Additional Resources

About M5Stack

M5Stack specializes in developing modular, stackable, and scalable electronic development platforms. Their products are renowned for combining industrial-grade reliability with user-friendly interfaces, making them ideal for both educational environments and professional applications. The company's commitment to open-source hardware and software solutions has established them as a leading provider of IoT and industrial control solutions.
