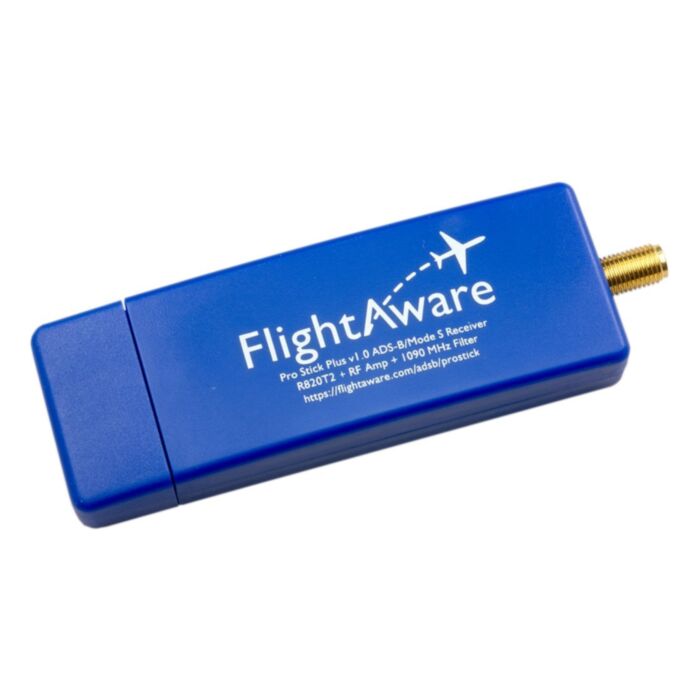

FlightAware Pro Stick Plus (USB SDR ADS-B Receiver)

Rating:

100% of 100

SKU: CE08409 Brand: The Pi Hut Guides (1)

Automatic Dependent Surveillance-Broadcast (ADS-B) is a technology that enables aircraft to determine their position via satellite and then broadcast it....

$114.95 AUD, inc GST

$104.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

5-10 $100.32 (exc GST)
10+ $97.18 (exc GST)

Recommended Essentials:

3dBi ADS-B 1090Mhz SMA Antenna w/ Magnetic Base

$11.50

Automatic Dependent Surveillance-Broadcast (ADS-B) is a technology that enables aircraft to determine their position via satellite and then broadcast it. This information can be received by ground stations enabling aircraft to be tracked. With FlightAware, you can build and run your own ADS-B ground station that can be installed anywhere and receive real-time data directly from aeroplanes on your Raspberry Pi!

FlightAware has revolutionized the world of USB SDR ADS-B Receivers with the FlightAware Pro Stick and Pro Stick Plus, high-performance USB R820T2 Software Defined Radios (SDR) with a built-in RF amp for maximum ADS-B/MLAT performance. The first of its kind, FlightAware's Pro Stick is compatible with PiAware or any other device that supports USB RTLSDR receivers.

The Pro Stick Plus adds a built-in 1090 MHz bandpass filter for increased performance and range of reception in areas with moderate RF noise as is typically experienced in most urban areas.

The Pro Stick and Pro Stick Plus are roughly the size of a traditional USB stick and require no external power. There are no moving parts.

Pro Stick Plus Features

Higher Performance for ADS-B and MLAT

- Increases range 10-20% over Pro Stick when filtering is beneficial
  - A 1090 MHz bandpass filter (whether built-in or a separate external part) is generally recommended for users in urban environments or with known high power radio transmitters nearby such as cell phone towers. Filtering is generally not recommended for users in rural environments. Filtering benefits may vary and are dependent on the installation location.
- Adds Built-in 1090 MHz filter with R820T2 SDR and RF Amplifier (USB powered)
- Native SMA connector yields reduced loss due to antenna cabling/adapters

Easier to Setup

SMA F connector for easy connectivity to high-performance antenna
No MCX adapters required
No external amplifier required

Pro Stick Plus Specifications

Chip: R820T2
Amplifier: 19dB with 0.4dB noise figure and OIP3 +39dB
TCXO: 0.5 ppm
Filter: 1,075 MHz to 1,105 MHz pass band with insertion loss of 2.3 dB; 30 dB attenuation on other frequencies
Power Draw: 300 mA
Weight: 17 g / 0.6 oz
Dimensions: 95 mm x 32 mm x 13 mm
Antenna Port: SMA female (requires SMA antenna cable and optionally N-male adapter for large antenna)
Interface: USB A
Range: Over 300 nm/550 km depending on installation quality
Performance: 10-20% more Mode S messages in installations where filtering is beneficial
Computer: Raspberry Pi 3 Running PiAware Recommended
