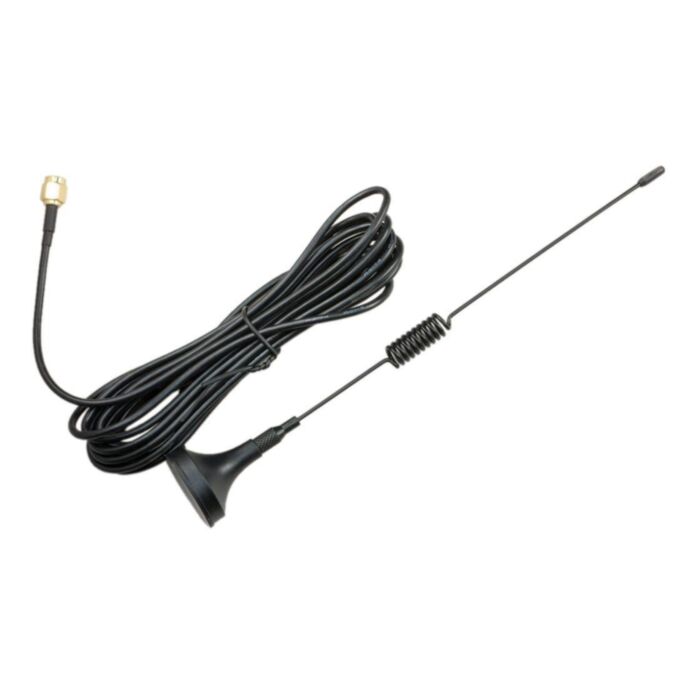

3dBi ADS-B 1090Mhz SMA Antenna w/ Magnetic Base

Rating:
100% of 100
SKU: CE08549 Brand: The Pi Hut Guides (1)
This neat little 3DBi ADS-B 1090Mhz SMA Antenna with Magnetic Base is designed to receive ADS-B data from aircraft! It features an SMA Male connecter, so...
$11.65 AUD, inc GST
$10.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 10-25 $10.16 (exc GST)
  • 25+ $9.85 (exc GST)
- +

19 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This neat little 3DBi ADS-B 1090Mhz SMA Antenna with Magnetic Base is designed to receive ADS-B data from aircraft! It features an SMA Male connecter, so it's compatible with all ADS-B receivers including FlightAware Dongles , PiAware, Mode S Beast, Radarcape, Kinetic SBS1/SBS3, RTL Dongles, and more. It's designed to attach neatly to an internal metal surface and track planes as they drift on by.

Customers should be aware that ADS-B signals do not penetrate solid surfaces well, and the antenna should be placed high and next to a thin external surface e.g. a window. Don't expect this to work well through 12" of brickwork!

Features

  • Frequency: 1090MHz
  • Gain: 3dBi (Max)
  • Polarization Type: Vertical
  • Rated Power: 50W
  • Input Impedance: 50 Ohms nominal
  • Cable Length: 3M
  • Connector Type: SMA Male Plug
  • Rod length: 17cm
  • Indoor Use Only

This product is listed in:

Wireless>General RF>Antennas
