RTL-SDR BLOG V3 USB Dongle with Dipole Antenna Kit

Rating:
100% of 100
SKU: WRL-22957 Brand: Sparkfun
The RTL-SDR BLOG V3 is a low-cost software defined radio USB dongle...
$109.95 AUD, inc GST
$99.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 8th of Oct

Quantity Discounts:

  • 5-10 $96.95 (exc GST)
  • 10+ $94.95 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

14 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The RTL-SDR BLOG V3 is a low-cost software defined radio USB dongle. Perfect for getting into projects that utilize software defined radios or just learning more about them.

The RTL-SDR Blog V3 is an improved RTL-SDR dongle. RTL-SDR dongles were originally designed for DVB-T HDTV reception, but they were found by hardware hackers to be useful as a general purpose SDR. The standard dongles are okay for DVB-T reception, but are just barely suitable for SDR users/experimenters. The RTL-SDR Blog V3 was redesigned with SDR user needs in mind, instead of DVB-T HDTV users who typically have more relaxed requirements.

RTL-SDR works hard to maintain a higher standard of quality for the BLOG V3 among the other entry level SDR dongles on the market such as upgraded antennas and an Aluminum case for better cooling. With a bandwidth up to 2.4MHz and a frequency range of 500kHz - 1766 MHz it's a capable SDR at a great price.

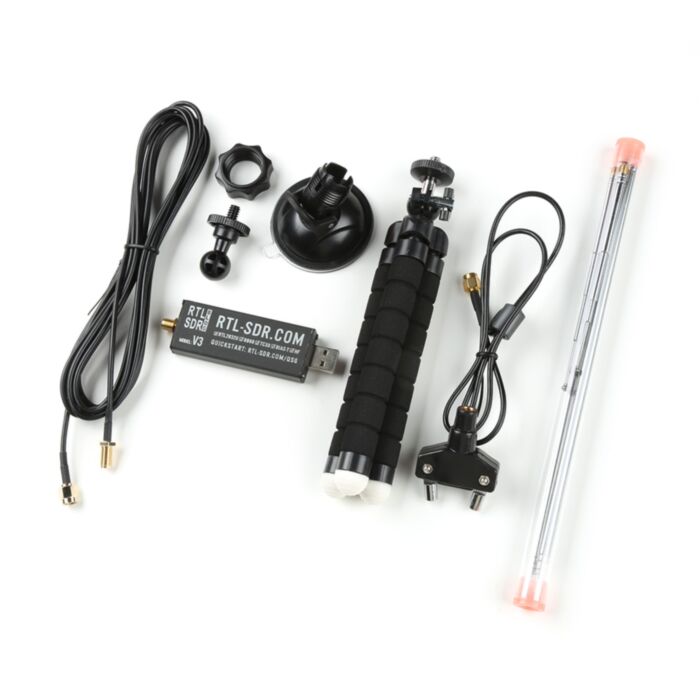

This kit includes the BLOG V3 USB Dongle and the RTL-SDR VHF/UHF dipole antenna kit. Great for beginners as it allows for terrestrial and satellite reception.

Includes

  • SDR-RTL BLOG V3 USB Dongle
  • Multipurpose Dipole Antenna Kit
    • 2 sets of telescoping VHF/UHF antennas
      • 2 x 23cm to 1m telescopic antennas
      • 2 x 5cm to 13cm telescopic antennas
    • Dipole Antenna Base with 60cm RG174
    • 3 meter RG174 extension cable
    • Flexible Tripod Mount
    • Suction Cup Mount

Features

  • <1 PPM temperature compensated oscillator (TCXO)
  • SMA female antenna port
  • 4.5V USB powered bias tee
  • HF Direct Sampling Mode
  • Aluminium case and passive cooling
  • Improved Antennas
  • R820T2 tuner
  • Bandwidth: Up to 2.4 MHz stable.
  • ADC: RTL2832U 8-bits
  • Frequency Range: 500 kHz – 1766 MHz (500 kHz – 24 MHz in direct sampling mode)
  • Typical Input Impedance: 50 Ohms
  • Typical Current Draw: 270 – 280 mA
  • Compatible with Windows XP and above (SDR# requires Win 7or newer), Linux, MacOS and Android. A dual core machine is recommended.
    • Single board PCs like the Raspberry Pi, Odroid, C.H.I.P are also supported with most command line apps.
