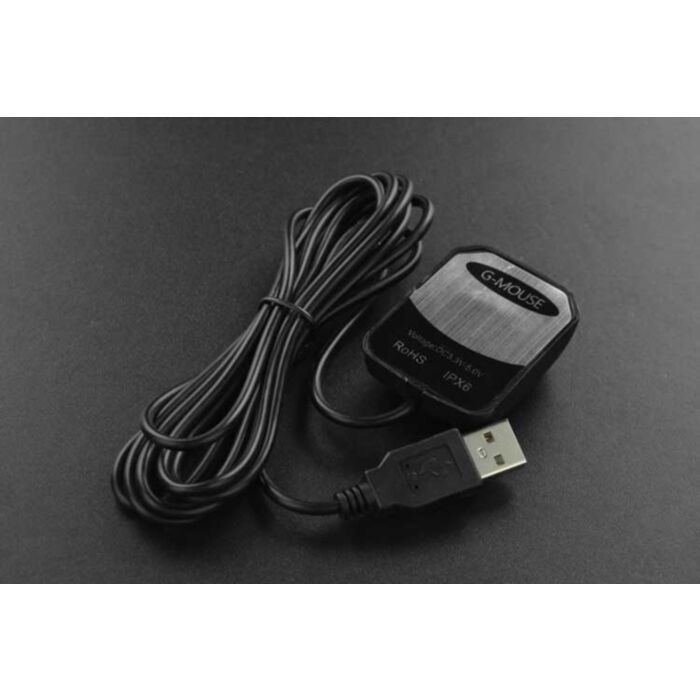

USB GPS Receiver (2m Extension Cable)

Rating:
100% of 100
SKU: TEL0138 Brand: DFRobot
This is an Ublox chip-based GPS receiver module of low power and high sensitivity that can receive 56 channels satellite signal. Compared with traditional GPS receivers...
$21.15 AUD, inc GST
$19.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 18th of Oct

Quantity Discounts:

  • 10-25 $18.65 (exc GST)
  • 25+ $18.26 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is an Ublox chip-based GPS receiver module of low power and high sensitivity that can receive 56 channels satellite signal. Compared with traditional GPS receivers, it brings much more accurate and faster-positioning performance with stronger signals. Integrated with a built-in receiving antenna, this product adopts a high-precision positioning chip and industrial-grade manufacturing process so that it can meet the positioning requirements of both industrial-grade and personal use. The GPS receiver has a battery inside for supplying power for storing satellite data, such as satellite signal status, final position, and time that would greatly increase the positioning speed at the module’s next boot. Besides, this receiver adopts USB interface, which can be conveniently used in main controllers like Raspberry Pi, NVIDIA, LattePanda. The module has a 2m USB cable and its bottom is magnetic which makes it able to be easily attached to metal objects. It is suitable for vehicle navigation, handheld positioning, wearable devices, and other fields.

Specification

  • Chip: UBX-G7020-KT
  • Frequency: L1, 1575.42MHz/L2,1561.10MHZ/L3,1602.00MHZ
  • Baud Rate: 4800,9600,19200,38400,57600,115200bps
  • Receiving Channel: 56CH
  • Sensitivity: tracking -162dBm; Acquisition: 160dBm; cold start: -148dBm
  • Cold Start: 29s average
  • Warm Start: 3s average
  • Hot Start: 1s average
  • Accuracy: horizontal position accuracy<2.5M, SBAS<2.0M
                         Timing accuracy: 30ns
  • Update Rate: 1Hz
  • Outline Dimension: 38×49×16mm
  • USB Length: 2m
  • Operating Temperature: -40°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C

Documents

Parts List

  • USB GPS Receiver (2m Extension Cable) x1
