HackRF Pro

SKU: GSG-HACKRF-PRO Brand: Great Scott Gadgets

A compact software-defined radio for experimentation across 100 KHz–6 GHz, with half‑duplex transmit and receive capabilities for radio signals.

$669.95 AUD, inc GST

$609.05 AUD, exc GST

Out of Stock

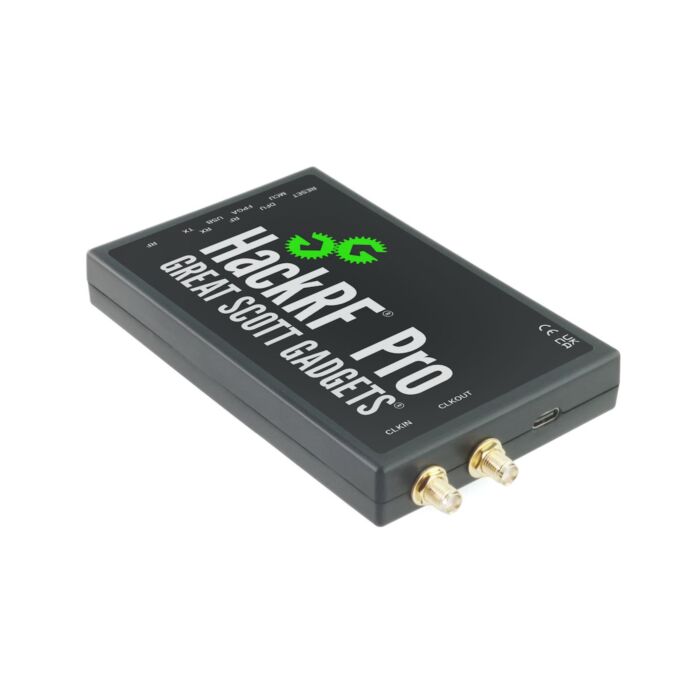

The HackRF Pro is the next evolution of the renowned open-source Software Defined Radio (SDR) platform from Great Scott Gadgets. It is a wideband half-duplex transceiver that operates from 100 kHz to 6 GHz, capable of both transmitting and receiving radio signals for analysis, research, and development.

Compared to the previous revision, the HackRF One - the Pro offers many updates and improvements.

A wider range and flatter frequency response, a USB-C High Speed Connector.
More RAM and Flash for custom firmware.

Features

Precision Timing Stability: Maintain accurate frequency tuning without drift, even as the device warms up, thanks to the built-in 0.5 ppm TCXO (Temperature Compensated Crystal Oscillator).
Cleaner Signal Capture: Analyse the spectrum without the interference of the DC offset spike found in previous models
Updated Logic Controller now using a modern FPGA from a CPLD.
Modern Connectivity: Connect easily to contemporary laptops and workstations via the updated USB-C interface, which manages both power and high-speed data transfer.
Versatile Sampling: Adapt to various signal types with sample rates up to 20 Msps in standard mode, or push to 40 Msps using the new half-precision mode.
Wideband Coverage: Experiment with everything from FM radio to GSM and WiFi signals with a massive operating range of 100 kHz to 6 GHz.

Specifications

Operating Frequency	100 kHz to 6 GHz
Tunable Range	0 Hz to 7.1 GHz
Sample Rate	20 Msps (Standard) 40 Msps (Half-precision)
Interface	USB-C (High-Speed USB 2.0)
Oscillator Stability	0.5 ppm TCXO
ADC/DAC Resolution	8-bit I/Q (Standard) 16-bit (Extended precision mode)
Transceiver Mode	Half-duplex
RF Connector	SMA Female (50 Ohm)
Dimensions	120mm x 75mm (approx. PCB size)

Resources

HackRF | Read the Docs

This product is listed in:

Wireless>General RF>Development Tools
Wireless>General RF
Test Equipment>Spectrum Analysers
