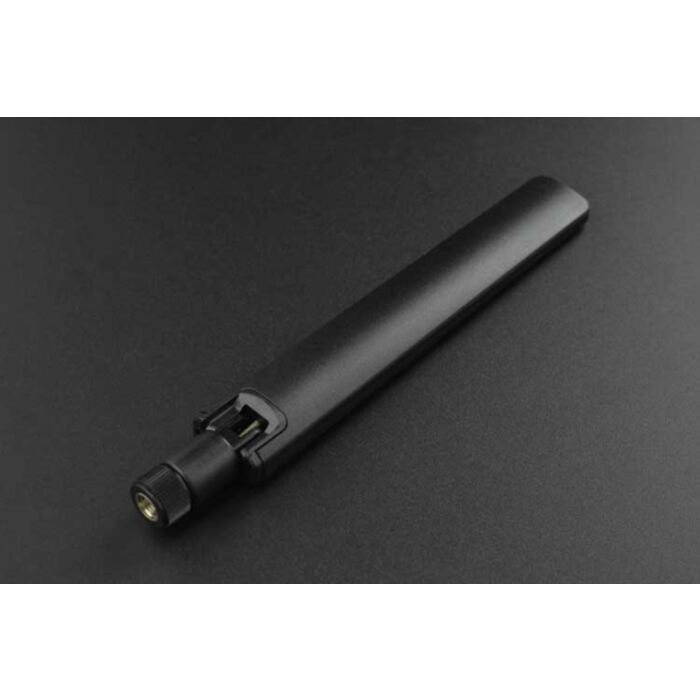

600-6000MHz 5G Antenna

SKU: TEL0143 Brand: DFRobot

These 5G antennas are designed for 5G modules and equipment that require high efficiency and peak gain to deliver excellent throughput for access points, terminals...

$13.95 AUD, inc GST

$12.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 15 and May 21

Quantity Discounts:

10-25 $12.30 (exc GST)
25+ $12.05 (exc GST)

These 5G antennas are designed for 5G modules and equipment that require high efficiency and peak gain to deliver excellent throughput for access points, terminals, and routers on all major cellular (5G/4G/3G/2G) frequency bands in the world. With strong stability, it can effectively enhance WiFi and 5G signals, transmit and receive signals, and improve network quality. The module supports 90° bending, flexible pointing, and is backward compatible with 5G/4G/3G/2G cellular applications, such as 5G, LTE, GSM, UMTS, Wi-Fi, etc.

Specification

Frequency: 600MHz-6000MHz
Impedance: 50Ω
Standing Wave Ratio: <3
Gain: 5dBi
Connector: SMA
Connection Wire: 11.5mm, IPEX4 generation
Operating Temperature: -40°C - 85°C
Humidity: non-condensing 65°C, 95%RH
Size: 47mm in diameter, 30mm in height

Parts List

600-6000MHz 5G Antenna x1
