M5Stack M5GO IoT Starter Kit

SKU: CE07682 Brand: M5Stack

This M5GO IOT Kit is a multi-Unit feast with 6 M5units inside (ENV III, IR, RGB, PIR, ANGLE, HUB). Just like other M5Stack development kits, the Core Module is powered by an ESP32.

$164.95 AUD, inc GST

$149.95 AUD, exc GST

Quantity Discounts:

5-10 $143.95 (exc GST)
10+ $139.45 (exc GST)

Out of Stock

We currently have limited local stock of this product and back-ordering is unavailable due to global supplier chipset shortages.

The M5GO IoT Starter Kit is a cost-effective IoT starter development kit. The kit contains one M5GO Core Module + 6 expansion units with different functions (sensors/actuators/splitters) + . The Core adopts Espressif ESP32 chip, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors, with a main frequency of 240MHz. With 16M FLASH memory for larger program size. The ESP32 also supports Wi-Fi, which can be used to build smart wearable devices, smart home and other applications.

This M5GO kit is specifically designed for STEM education. The pack includes 1 M5GO conroller + 6 M5units + plenty of accessories. Having all those goods, together with the Blockly program platform, allows the school students to explore the engineering world , making their own IoT product and implement brilliant ideas into real life.

Power on/off:

Power on: click the red power button on the left
Power off: Quickly double-click the red power button on the left

Features

ESP32-based - with 16MB of Flash
Integrated IPS display panel with other hardware peripherals
Extendable Pins & Mounting points
Development Platforms include: UIFlow, MicroPython, Arduino

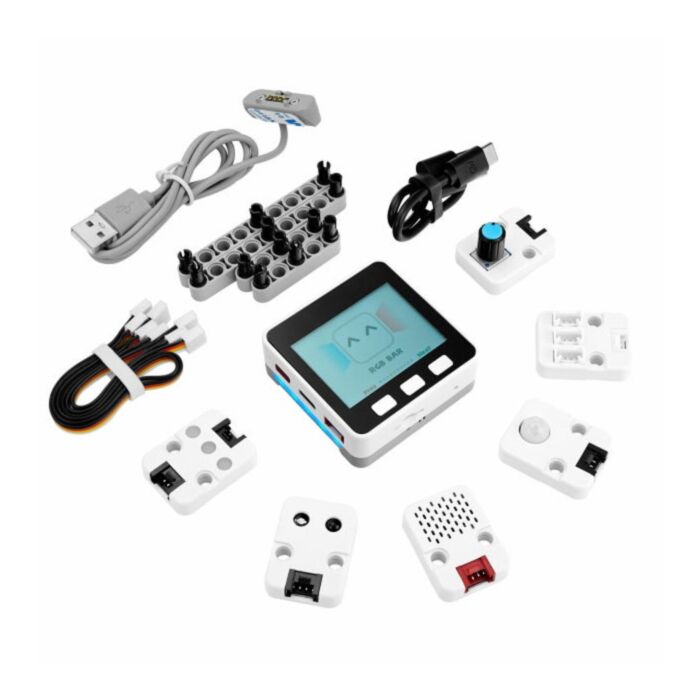

Include

1x M5GO Core Module
6x Units(ENV III, IR, RGB, PIR, ANGLE, HUB)
4x LEGO Compatible Blocks
12x LEGO Compatible Connections
4x GROVE cable
1x Type-C USB (20cm)
1x Quick Start Guide

Applications

Internet of things terminal controller
STEM
DIY creation

Specification

ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory 16MB
Power Input 5V @ 500mA
Onboard interfaces: USB-C x1, Pogo pin power connection x1, I2C x1, GPIO x1, UART x1
IPS Screen 2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit
Speaker 1W-0928
IMU: 6-axis MPU6886
Microphone: Analog BSE3729 Microphone
Serial adapter chip: CH9102F
In-built RGB LED panel: 10x SK6812
Battery 500 mAh @ 3.7V
Antenna 2.4G 3D Antenna
Operating Temperature: 0°C to 40°C
Net weight 56.4g
Gross weight 228g
Product Dimensions 54 x 54 x 21 mm
Package Size 147 x 90 x 40 mm
Case Material Plastic ( PC )
