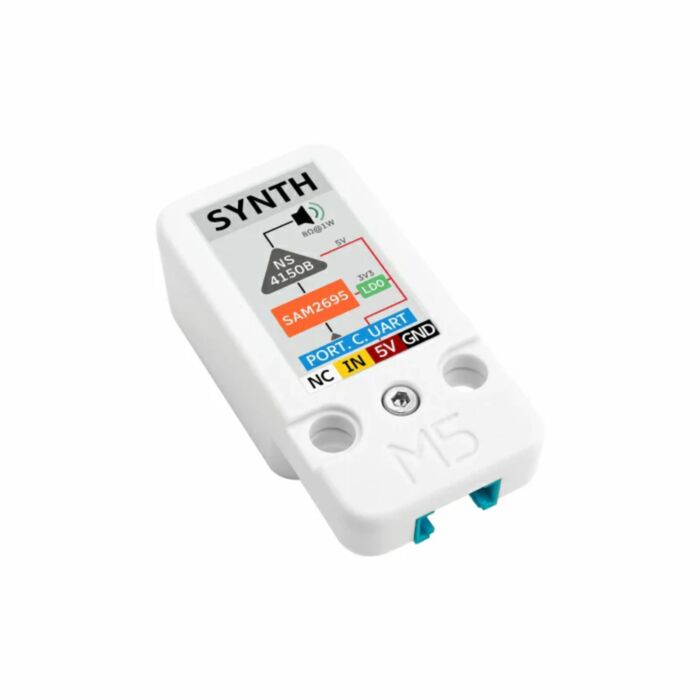

M5Stack DIY MIDI Music Synthesizer Unit

SKU: CE010054 Brand: M5Stack

Explore the M5Stack DIY MIDI Music Synthesizer Unit featuring SAM2695 audio synthesis chip, multi-channel instrument output, and built-in Class D amplifier for electronic music production, live performances, and STEAM education projects.

$34.30 AUD, inc GST

$31.18 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 13

Quantity Discounts:

10-25 $30.25 (exc GST)
25+ $29.62 (exc GST)

The M5Stack DIY MIDI Music Synthesizer Unit is a powerful audio synthesis module featuring the SAM2695 chip, designed for creating rich, multi-channel instrument sounds. This versatile unit combines professional-grade audio capabilities with easy integration, making it an ideal choice for electronic music production, live performances, and educational projects.

Key Features

SAM2695 audio synthesis chip for high-quality sound generation
Multi-channel instrument output capabilities
Built-in NS4150B Class D amplifier for crystal-clear audio
Four-stage EQ and reverb parameter adjustments
Standard MIDI protocol support
Serial port communication interface
Compatible with Arduino and UIFlow programming environments

Technical Specifications

Audio Synthesizer: SAM2695
Power Amplifier: NS4150B Class D
Speaker: 8Ω@1W
Operating Temperature: 0-40°C
Dimensions: 48 x 24 x 16mm
Weight: 10g

How to Use

The synthesizer unit connects via the included Grove cable to compatible M5Stack devices such as the M5Stack Core2 ESP32 IoT Development Kit. Once connected, the unit can be programmed through Arduino IDE or UIFlow to generate MIDI sounds, adjust audio parameters, and create custom sound profiles. The four-stage EQ and reverb controls allow for precise audio manipulation, while the Class D amplifier ensures optimal sound output quality.

What's in the Box

1x M5Stack DIY MIDI Music Synthesizer Unit
1x Grove Cable (20cm)

Compatibility

The synthesizer unit is compatible with the M5Stack ecosystem, including:

Additional Resources

Official Documentation

About M5Stack

M5Stack specialises in developing modular electronic development kits and solutions. Their product range focuses on ESP32-based systems that combine ease of use with professional-grade capabilities. The company's commitment to open-source hardware and software makes their products particularly suitable for educational environments and professional prototyping applications.

This product is listed in:

Kits>Maker Kits
School Education>STEM & STEAM Kits
