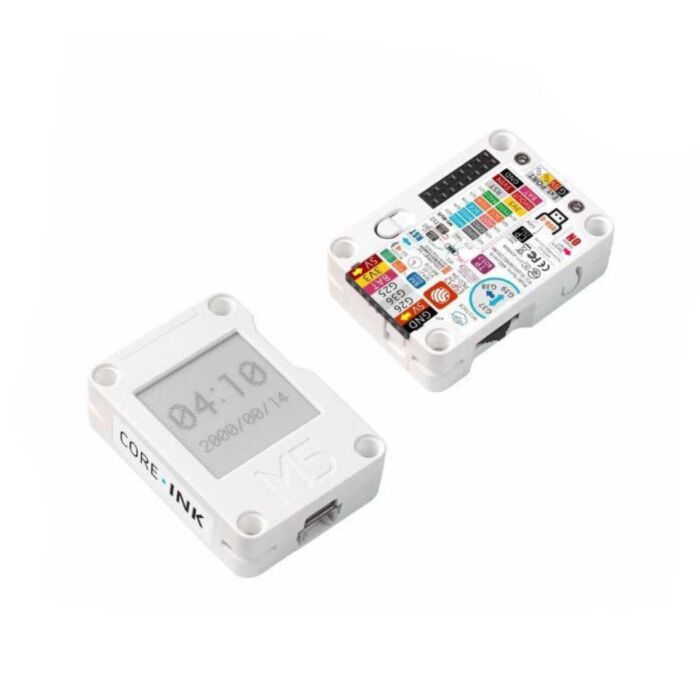

M5Stack ESP32 Core Ink Development Kit (1.54'' elnk display)

SKU: CE07787 Brand: M5Stack

$60.50 AUD, inc GST

$55.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6-12 $52.80 (exc GST)
12+ $51.15 (exc GST)

CoreInk is a brand new E-ink display in the M5Stack cores range. Controlled by the ESP32-PICO-D4 This new device includes a 200x200 1.54" Black and White E-Ink Display. Compared to a regular LCD,E-ink displays are easier on the eyes, which makes them a great choice for reading or viewing for longer periods. Other benefits are the low power consumption and the ability to retain the image even if power to the display is terminated?For control the CoreInk integrates an multi-function button,A physical button, integrated status LED and buzzer.The device also includes a 390mAh Lipo,RTC(BM8563)for controlling accurate timing and deep sleep funcionality. CoreInk features independent reset and power buttons,expansion ports(HY2.0-4P,M-BUS,HAT expansion)for attaching external sensors to expand functionailty,for unlimited possibilities?

Precautions: Please avoid long-time high-frequency refresh when using it. The recommended refresh interval is (15s/time). Do not expose to ultraviolet rays for a long time, otherwise, it may cause irreversible damage to the ink screen. The low-power power management solution adopted by CoreInk is different from that of CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the reset button on the back.

Product Features

ESP32 Standard wireless functions WiFi,Bluetooth
Internal 4M Flash
Low Power Display
180 degree viewing angle
Expansion ports
Built-in Magnet
Internal Battery
Expandable

Applications

IoT Terminal
E-Display
Industrial Control Panel
Electronic Tag

Includes

1x CoreInk
1x Type-C USB(20cm)

Specification

ESP32-PICO-D4: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash: 4MB Flash
Input Voltage: 5V @ 500mA
Ports: TypeC*1, HY2.0-4P*1 , M-BUS Female Connector,Pin Array/ Hat Expansion
Screen: GDEW0154M09 | SPI Port | 200*[email protected]" | Dpi:184 | 1-bit Black & White(Grayscale:2) |
Viewing Area(mm):27.6x27.6 | Dot pitch(mm) 0.138x0.138 | Refresh Time(s) 0.82 /Partial refresh(s) 0.24
Physical Buttons: Programmable *1 , Reset *1, Power *1
LED: Green LED x 1
RTC: BM8563
Buzzer: Passive Buzzer*1
Wifi: 2.4G 3D Antenna
PINS: G25, G26, G36, G23, G34, G18, G21, G22, G14, G13
Battery: [email protected]
Working Temp: 32°F to 104°F ( 0°C to 40°C )
Net Weight: 32g
Gross Weight: 55g
Dimensions: 56*40*16mm
Package Size: 82*46*20mm
Case: Material Plastic ( PC )
