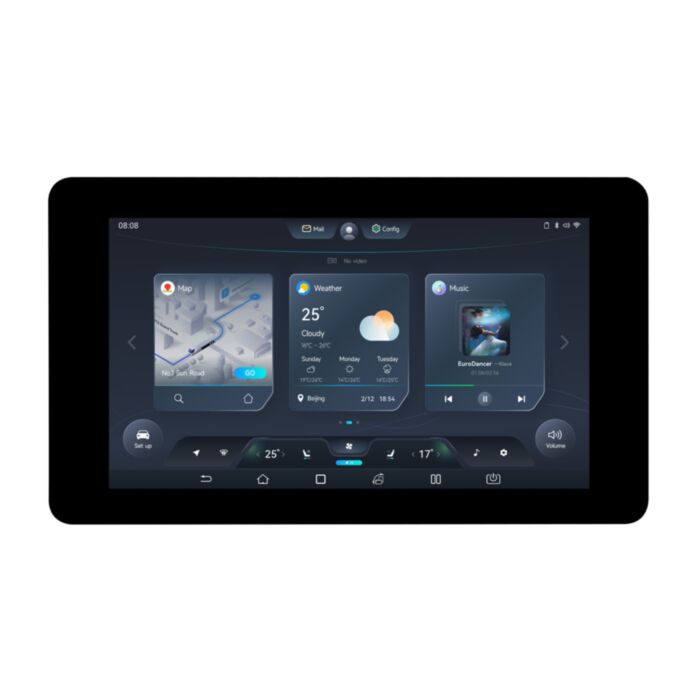

ESP32-S3 7inch Capacitive Touch Display Development Board
In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov
Quantity Discounts:
- 6-12 $60.14 (exc GST)
- 12+ $58.90 (exc GST)
ESP32-S3-Touch-LCD-7 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
- Onboard 7inch capacitive touch display, 800×480 resolution, 65K color
- Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
- Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
- Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios
What's On Board
- ESP32-S3N8R8 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
- 7inch display panel connector
- Touch panel connector
- TF card slot
- USB Type-C port
- UART1 PortUSB TO UART Type-C port
- UART2 connector UART1 and UART2 are the same UART, selected by switch
- Sensor header
- CAN header
- I2C header
- RS485 header
- 3.7V single lithium battery PH2.0 header
- CAN terminal resistor selection
- RS485 terminal resistor selection
- UART selection select UART1 or UART2
- BOOT button Press and hold while powering on for program burning
- RESET button
- I2C level selection 3.3V / 5V
- DONE Lithium battery charging completed indicator
- CHG Lithium battery charging indicator
- PWR Power supply indicator
Dimensions
Documents
Shipping List
- 1 x ESP32-S3-Touch-LCD-7
- 2 x HY2.0 2P to 2PIN male cable 10cm
- 1 x HY2.0 2P to 3PIN male cable 10cm
- 2 x HY2.0 2P to 4PIN male cable 10cm
