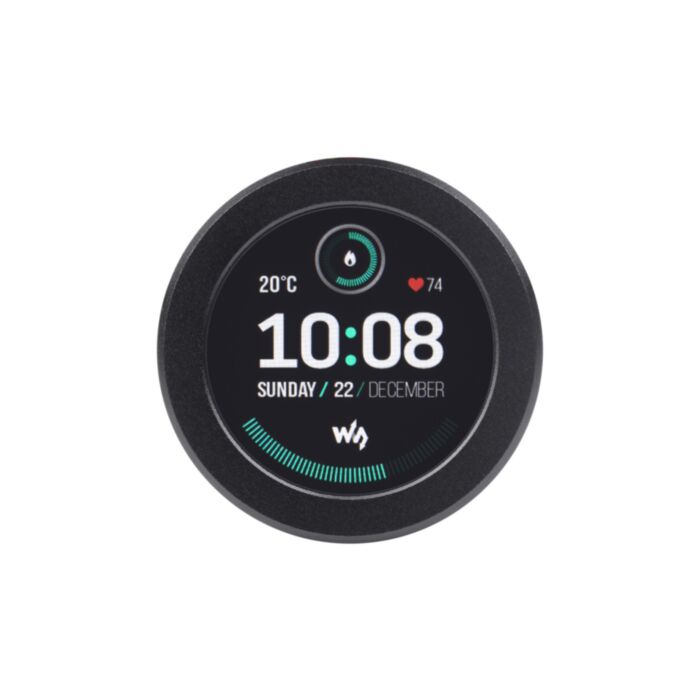

ESP32-S3 Development Board and 1.28inch Round Touch LCD With CNC Metal Case

SKU: WS-26959 Brand: Waveshare
ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor, Round Display, With CNC Metal Case...
$45.15 AUD, inc GST
$41.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 31st of Dec

Quantity Discounts:

  • 10-25 $39.40 (exc GST)
  • 25+ $38.17 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

What's On Board

ESP32-S3 Touch LCD, onboard components

  1. ESP32-S3R2 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM

  2. W25Q128JVSIQ 16MB NOR-Flash

  3. CH343P USB to UART chip

  4. ME6217C33M5G 800mA output, low dropout, high rejection rate

  5. ETA6096 high-efficiency Lithium battery recharge manager

  6. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.

  7. MX1.25 battery header MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

  8. USB Type-C connector for program burning and log printing

  9. RESET button

  10. BOOT button Press it before resetting to enter download mode

Pinout

ESP32-S3 Touch LCD, pin definition

Dimensions

ESP32-S3 Touch LCD outline dimensions with black metal case

Documents

Shipping List

  • 1 x ESP32-S3-Touch-LCD-1.28
  • 1 x CNC Aluminium Case
  • 1 x JST-SH 12 PIN Cable
  • 1 x Screwdriver
