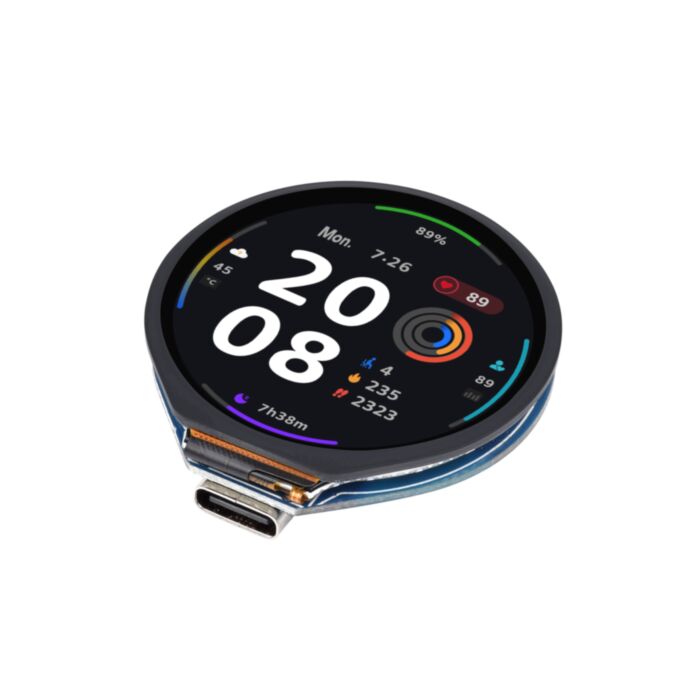

ESP32-S3 Development Board (1.28inch Round Touch LCD)

SKU: WS-25098 Brand: Waveshare
ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor...
$35.85 AUD, inc GST
$32.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $31.29 (exc GST)
  • 25+ $30.31 (exc GST)
- +

7 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor
ESP32-S3-Touch-LCD-1.28

Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip

Features

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

  • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
  • Onboard 3.7V MX1.25 lithium battery recharge/discharge header
  • Adapting 6 × GPIO pins via SH1.0 connector
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

Small size, touch more possibilities

Suitable for various smart devices development, can realize human-computer interaction function

What's On Board
  1. ESP32-S3R2
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
  2. W25Q128JVSIQ
    16MB NOR-Flash
  3. CH343P
    USB to UART chip
  4. ME6217C33M5G
    800mA output, low dropout, high rejection rate
  5. ETA6096
    high-efficiency Lithium battery recharge manager
  1. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
  2. MX1.25 battery header
    MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
  3. USB Type-C connector
    supports USB1.1 hosts and slave devices
  4. RESET button
  5. BOOT button
    Press it before resetting to enter download mode

Pin definition

Product Show



outline dimensions

Weight: 0.013 kg

Quick Overview

  1. ESP32-S3-Touch-LCD-1.28 x1
  2. SH1.0 12PIN cable x1
1
2
