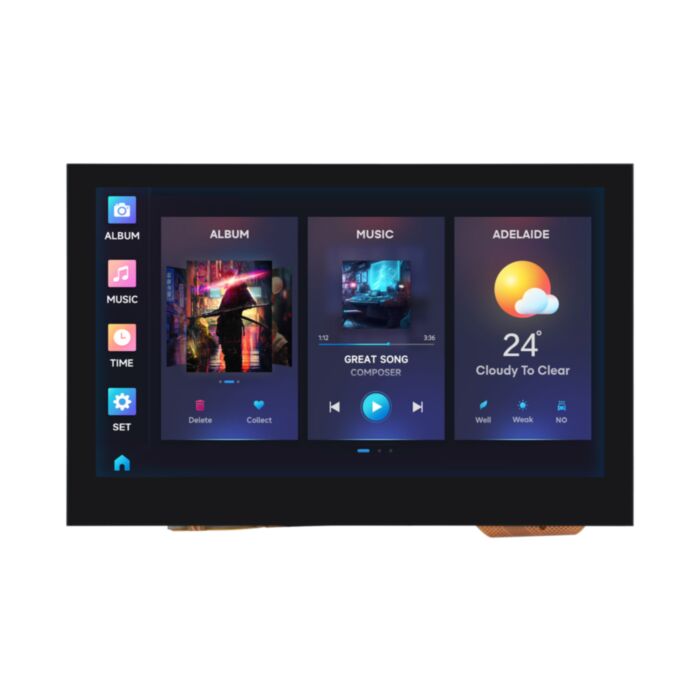

ESP32-S3 4.3inch Capacitive Touch Display Development Board

SKU: WS-25948 Brand: Waveshare
ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi...
$57.40 AUD, inc GST
$52.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

Quantity Discounts:

  • 6-12 $50.62 (exc GST)
  • 12+ $49.57 (exc GST)
- +

11 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

Features

ESP32-S3-Touch-LCD-4.3 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

  • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
  • Onboard 4.3inch capacitive touch display, 800×480 resolution, 65K color
  • Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
  • Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

What's On Board

  1. ESP32-S3N8R8 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
  2. SGM2212-3.3 800mA low-noise LDO
  3. FSUSB42UMX for USB pins multiplexing
  4. Touch panel connector
  5. USB TO UART Type-C port
  6. USB Type-C port
  7. TJA1051T/3/1J CAN interface chip
  8. CH422G IO expansion chip
  9. BOOT button Press and hold while powering on for program burning
  10. RESET button
  11. MP3302DJ-LF-Z Screen backlight boost chip
  12. 4.3inch display panel connector
  13. TF card slot
  14. Sensor header
  15. CAN header
  16. I2C header
  17. RS485 header
  18. 3.7V single lithium battery PH2.0 header
  19. CAN terminal resistor selection
  20. RS485 terminal resistor selection
  21. CH343P USB to UART chip
  22. SP3485 RS485 transceiver chip
  23. CS8501 Lithium battery recharge manager
  24. Status Indicators PWR: Power supply indicatorCHG: Lithium battery charging indicatorDONE: Lithium battery charging completed indicator

Dimensions

Resources

Shipping List

  1. ESP32-S3-Touch-LCD-4.3 x1
  2. HY2.0 2P to 2PIN male cable 10cm ×2
  3. HY2.0 2P to 3PIN male cable 10cm ×1
  4. HY2.0 2P to 4PIN male cable 10cm ×1
  5. Standoff pack ×1
