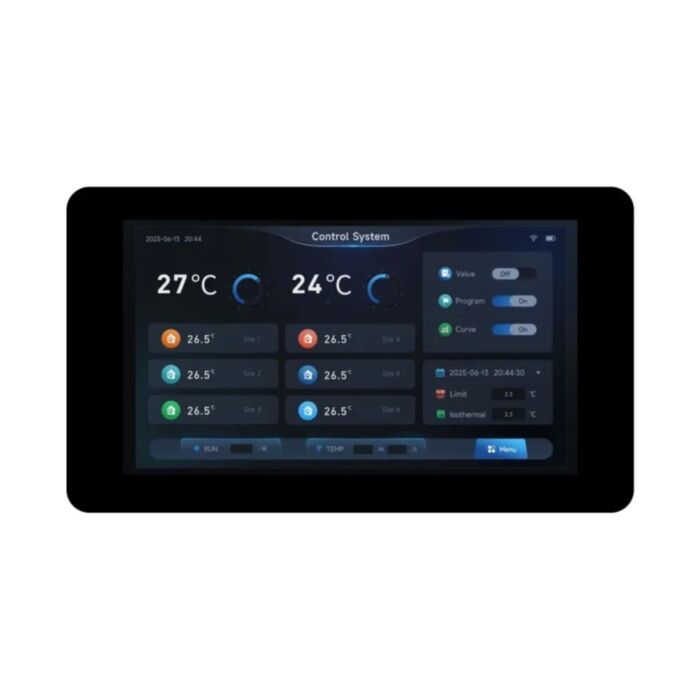

ESP32-S3 7inch 1024x600 Capacitive Touch Display Dev Board (Type B)
Build a touch-driven control panel or smart-home dashboard with a big, sharp screen and wireless connectivity on a single board.
Available with a lead time
Expect dispatch between Oct 19 and Oct 26
A 7-inch, 1024 × 600 IPS touchscreen with an ESP32-S3 built right in - everything you need for a responsive, polished human-machine interface without wiring a separate display to a microcontroller.
At its heart is an ESP32-S3 module: a dual-core Xtensa LX7 running at up to 240 MHz with 16 MB Flash and 8 MB PSRAM, giving LVGL the memory it needs to drive the higher-resolution panel smoothly. Touch input comes from a 5-point capacitive panel behind tempered glass.
Type B is the upgraded version of Waveshare's 7inch ESP32-S3 board, stepping up from 800 × 480 and adding software backlight control and battery-voltage monitoring. Industrial-style bus connections, a TF/SD card slot and a lithium battery connector mean it can serve as a wall-mounted control panel, machine dashboard or portable data logger.
Getting started is quick: connect over USB-C, then program it in the Arduino IDE or ESP-IDF using Waveshare's LVGL demos and example code.
Features
- Readable from across the bench, thanks to an IPS panel with a 170° viewing angle and 235 cd/m² brightness
- Responsive 5-point capacitive touch with interrupt support, so your GUI reacts instantly without polling
- Plenty of headroom for rich interfaces, fonts and image buffers with large onboard Flash and PSRAM
- Wireless out of the box with 2.4 GHz Wi-Fi and Bluetooth 5 (LE) via the on-module antenna
- Talk directly to industrial and automotive gear over onboard CAN and RS485, each with selectable termination resistors
- Run untethered from a 3.7 V lithium cell, with onboard charge management, charge/done indicator LEDs and real-time battery-voltage readings
- Adjustable backlight brightness to save power or suit dim environments
- Dual USB-C ports: native USB for power and flashing, plus a separate USB-to-UART port for debugging
- Log data or load images and assets from the TF card slot
- Ready to wire up, with HY2.0-to-Dupont cables included for the onboard headers
Specifications
| Property | Specification |
|---|---|
| Module | ESP32-S3-WROOM-1-N16R8 |
| Processor | Xtensa 32-bit LX7 dual-core, up to 240 MHz |
| Memory | 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM |
| Wireless | 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE), onboard antenna |
| Display Size | 7 inch |
| Resolution | 1024 × 600 |
| Display Panel | IPS, RGB interface, 65K colours |
| Viewing Angle | 170° |
| Brightness | 235 cd/m² |
| Touch | Capacitive, 5-point, I2C with interrupt, tempered glass |
| Interfaces | CAN, RS485, I2C, sensor header, UART, TF card slot, 5 V output |
| USB | 2 × USB-C (native USB, USB-to-UART) |
| Battery Connector | PH2.0, 3.7 V single-cell lithium |
| Power Supply | 5 V via USB-C |
| Power Consumption | 5 V, 350 mA |
| Operating Temperature | 0 °C to 65 °C |
| Dimensions | 192.96 × 110.76 mm |
