M5Stack Mini Weight Unit (HX711) Load Cell Amplifier

Rating:

100% of 100

SKU: CE07679 Brand: M5Stack

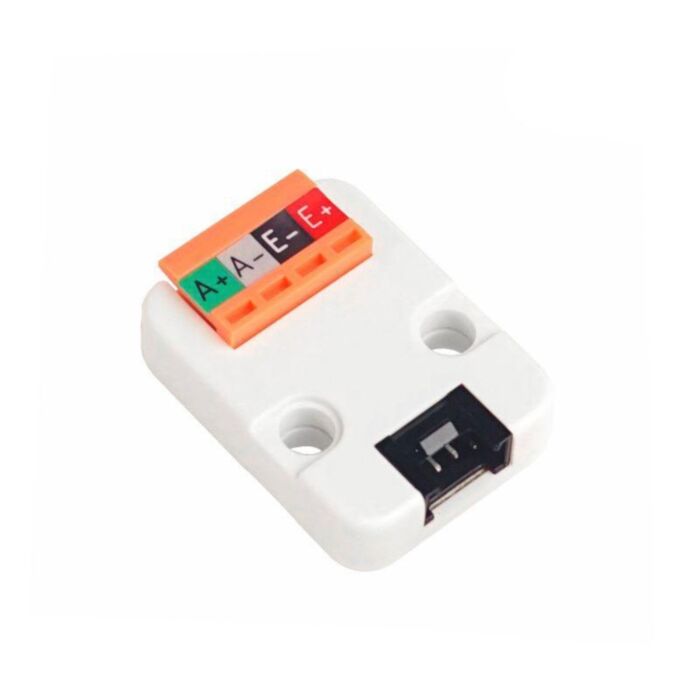

The M5Stack Mini Weight Unit Load Cell Amplifier integrates an HX711, 24-bit A/D chip that is specifically designed for an electronic weighing device.

$7.65 AUD, inc GST

$6.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

Quantity Discounts:

10-25 $6.75 (exc GST)
25+ $6.61 (exc GST)

WEIGHT integrates a HX711 24 bits A/D chip that is specifically designed for electronic weighing device.

The input multiplexer selects either Channel A or B differential input to the low-noise programmable gain amplifier (PGA). Channel "A" can be programmed with a gain of 128 or 64, corresponding to a full-scale differential input voltage of ±20mV or ±40mV respectively.

when a 5V supply is connected to AVDD analog power supply pin.

Channel B has a fixed gain of 32. There is no programming needed for the internal registers. All controls to the HX711 are through the pins.

In the test, we have this Unit channel A to connect a pressure sensor. Then, use M5Core screen to display the weight data.

Features

Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 32, 64 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controls, no programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operation temperature range: -40°C ~ +85°C
16 pin SOP-16 package
Program Platform: Arduino, UIFlow(Blockly, Python)
Two Lego-compatible holes

Include

1x WEIGHT Unit
1x Grove Cable

Applications

Micro weight meter
Kitchen Scale

Specification

Operating Voltage g
Operating Current g
Net weight 8g
Gross weight 20g
Product Size 40*24*12mm
Package Size 67*53*12mm
