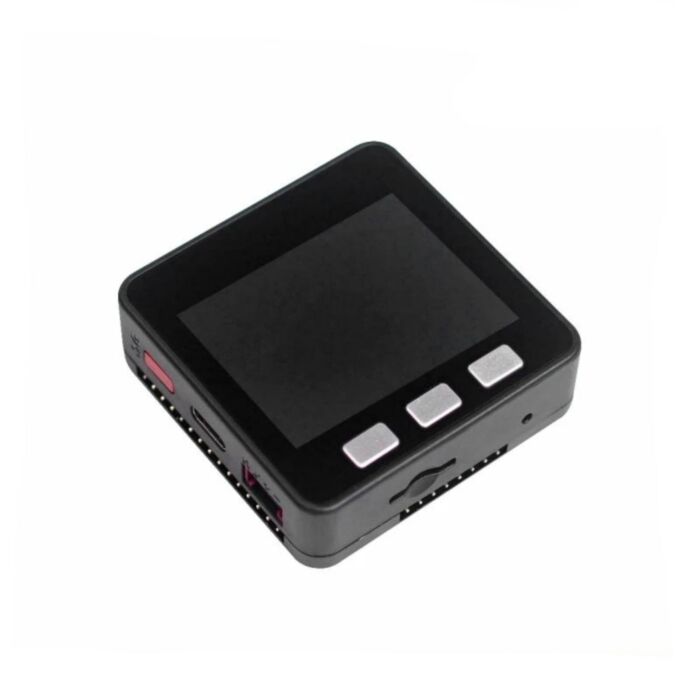

M5Stack ESP32 Basic Core IoT Development Kit

Rating:
100% of 100
SKU: CE07659 Brand: M5Stack
M5Stack BASIC Kit, like its namesake, is a starter kit among the M5Stack development kit series. It’s a modular, stackable, scalable, and portable device which is powered with an ESP-32 core, which makes it open source, low cost, full-function, and easy for developers to handle new product development on all stages including circuit design, PCB design, software, mold design and production
$75.99 AUD, inc GST
$69.08 AUD, exc GST

Quantity Discounts:

  • 6+ $68.05 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

M5Stack BASIC Kit, like its namesake, is a starter kit among the M5Stack development kit series. It’s a modular, stackable, scalable, and portable device which is powered with an ESP-32 core, which makes it open source, low cost, full-function, and easy for developers to handle new product development on all stages including circuit design, PCB design, software, mold design and production. This Basic kit provides a friendly price and full-featured resources which makes it a good starter kit for you to explore IoT.

If you want to explore the fastest way of IoT prototyping, M5Stack development board is the perfect solution. Not like others, M5Stack development board is highly efficient, covered with industrial grade case and ESP32-based development board. It integrates with Wi-Fi & Bluetooth modules and contains a dual-core and 16MB of SPI Flash . Together with 30+ M5Stack stackable modules , 40+ extendable units and different levels of program language, you can create and verify your IoT product in a very short time.

Supportive development platforms and programming languages: Arduino, Blockly language with UIFlow, Micropython. Regardless of what level programming skill you have, M5Stack would guide you in every step of the way to realize your idea as well as to the final productlization. e If you ever played with ESP8266, you would realize that ESP32 is a perfect upgrade out of ESP8266. In comparison, ESP32 has more GPIOs, more analog inputs and two analog outputs, multiple extra peripherals( like a spare UART ). Official developing platform ESP-IDF has transplanted with FreeRTOS. With dual-core and real time OS you can get more organized code and much high speed processor.

M5Stack Basic is consist with two separable parts. The upside part has all kinds of processors, chips and some other slot components. The bottom part has a lithium battery, M-BUS socket and extendable pins on both sides.

Power on/off

  • Power on: click the red power button on the left
  • Power off: Quickly double-click the red power button on the left

Product Features

  • ESP32-based
  • Built-in Speaker, Buttons,Color LCD, Power/Reset button
  • TF card slot (16G Maximum size)
  • Magnetic suction at back
  • Extendable Pins & Holes
  • M-Bus Socket & Pins
  • Program Platform: UIFlow, MicroPython, Arduino

Includes

  • 1x BASIC
  • 10x Dupont
  • 1x Type-C USB(20cm)
  • 1x User Manual
  • 1x Sticker

Applications

  • Internet of things terminal controller
  • Stem education product
  • DIY creation
  • Smart home equipment

Specifications

ESP32: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory: 16MB
Power Input: 5V @ 500mA
Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1
Core Bottom Port: PIN (G1,G2,G3,G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36)
IPS Screen: 2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit
Button: Custom button x 3
Speaker: 1W-0928
Battery: 110mAh @ 3.7V
Antenna: 2.4G 3D Antenna
Operating Temperature: 32°F to 104°F ( 0°C to 40°C )
Net weight: 47.2g
Gross weight: 93g
Product Size: 54 x 54 x 18mm
Package Size: 95 x 65 x 25mm
Case Material: Plastic ( PC )
