PiicoDev Buzzer Module v1.0

Rating:
100% of 100
SKU: CE09633 Brand: PiicoDev Guides (3)
CE Original

Play simple tones or even melodies - add an audible alert to your project.

$7.80 AUD, inc GST
$7.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

  • 4-12 $6.38 (exc GST)
  • 12+ $6.03 (exc GST)
  • 50+ $4.25 (exc GST)
- +

526 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

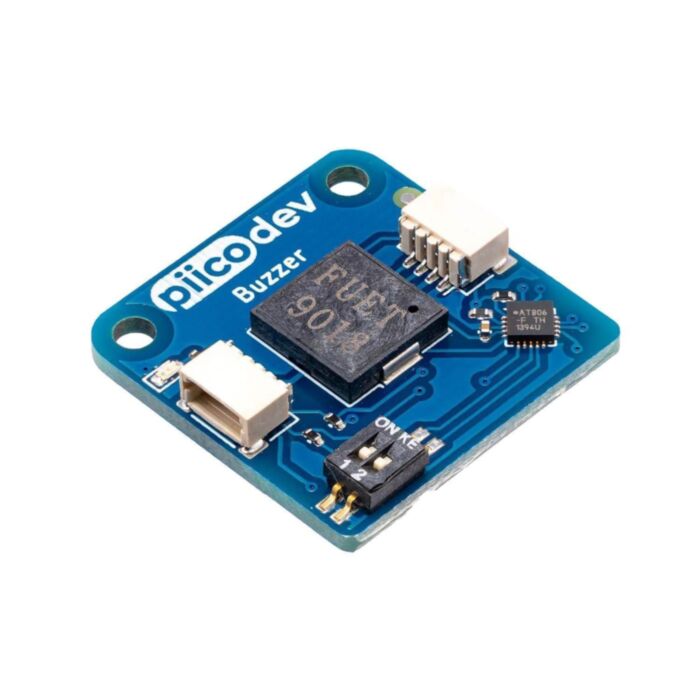

This is the original PiicoDev Buzzer Module v10 which uses a piezo transducer to create sound. It's a little quieter than the newer v20 design. It's designed for a classroom environment where you'll be able to hear it while at your desk, but likely won't be enough to alert you from across the room.

The PiicoDev® Buzzer Module adds an audible alert to your project. Play simple tones or even melodies by following the guides. The buzzer's volume can be adjusted in-code so you don't have to listen to your alarm at max-volume during prototyping - perfect for classrooms and makerspaces.

  • Easily play tones/melodies
  • Add an audible alert to your project
  • Adjustable volume
  • User-controllable LED
  • No soldering required
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics



Getting Started Guides

Technical Specifications

  • Default I2C address: 0x5C (Four ID switches address 0x5c, 0x09->0x17).
  • Software addressing available. Follow the PiicoDev Connection Guide
  • Dimensions PCB: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • Operating Voltage: 3.3V

PiicoDev Buzzer Modules are equipped with four ID switches (two DIP switches on the front, two solder jumpers on the back) which set the unique ID of the device. Use these switches if you want to connect two or more Buzzer Modules, or other PiicoDev devices featuring ID switches. Otherwise, they can be left in the default state - all off.

Resources:


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
