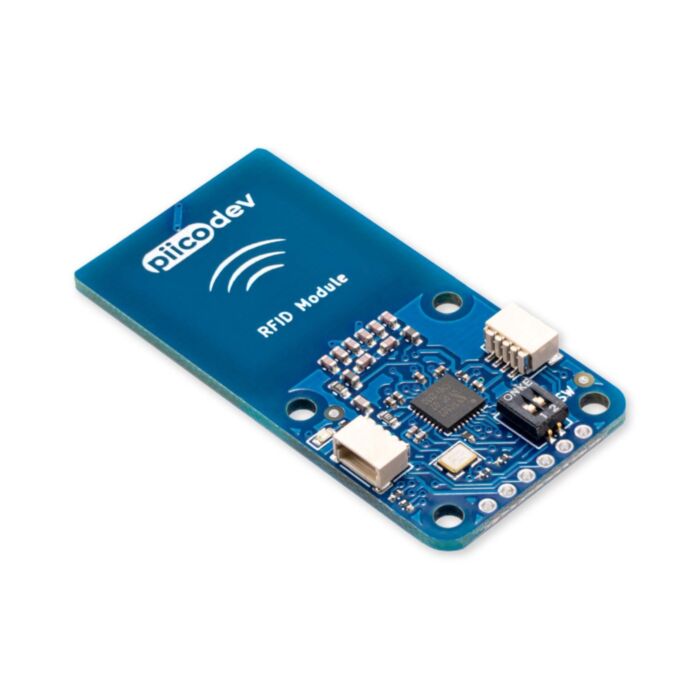

PiicoDev RFID Module (NFC 13.56MHz)

Rating:

100% of 100

10 Reviews

SKU: CE08086 Brand: PiicoDev Guides (4)

Read (and write) RFID/NFC tags with this compact module.

$9.50 AUD, inc GST

$8.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

4-12 $7.77 (exc GST)
12+ $7.35 (exc GST)
50+ $5.62 (exc GST)

Recommended Essentials:

PiicoDev Cable 100mm

$1.05

PiicoDev Cable 50mm

$0.96

PiicoDev Adapter for Micro:bit

$10.40

PiicoDev Adapter for Raspberry Pi

$4.45

PiicoDev LiPo Expansion Board for Raspberry Pi Pico

$7.45

RFID/NFC Tag Starter Pack (NTAG213 Chip, 13.56MHz) - Assorted Pack of 4

$7.30

The PiicoDev® RFID Module will get you started with reading (and writing) RFID tags. Use unique tag IDs to identify users, track your equipment, or make your own vending machine. Getting started is easy - there's no need for soldering, and great PiicoDev guides for Python / MicroPython. If you prefer to go freestyle, each RFID module features a standard breakout header for breadboarding or wires, and the small size makes it ideal for compact projects. This module is compatible with modern RFID / NFC tags: NTAG213, NTAG203 and Classic (aka. Mifare) tags. That means you can not only read the tag ID, but also read or write data to the tag. For more advanced projects, you can connect up to four RFID modules on a single bus. Each device address is selectable using the address switch (labelled ASW).

Features

Small size to fit your project
Read IDs and Read/Write data to your tag
Connect up to four RFID modules on the same bus
Great guides to get you started
PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
2.54mm breakout for breadboarding/prototyping
Manufactured and supported in Australia by Core Electronics

Getting Started Guides

Compatible Tag Packs

These tag packs are the easiest way to get started with RFID/NFC projects. These tags are tested with the PiicoDev RFID module and are available in different styles to suit your project's needs.

Assorted Pack of Four - a great way to experiment with different tag styles.
Credit Card Style
25mm Disk
Key Fob
Circular Sticker

Technical Specifications

Compatible with NTAG213 and Classic (aka. Mifare®) tags
Address: Selectable 0x2C to 0x2F using DIP switches
Operating Frequency 13.56 MHz
Range: 26mm
Dimensions: 25.4 x 52mm
Mounting Holes: 4x M2.5

Resources

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.

< PiicoDev RFID Module (NFC 13.56MHz)

PiicoDev Overview

PiicoDev is a

ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
Breakout pins. Every module has a breakout section for optional advanced uses.
Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.
