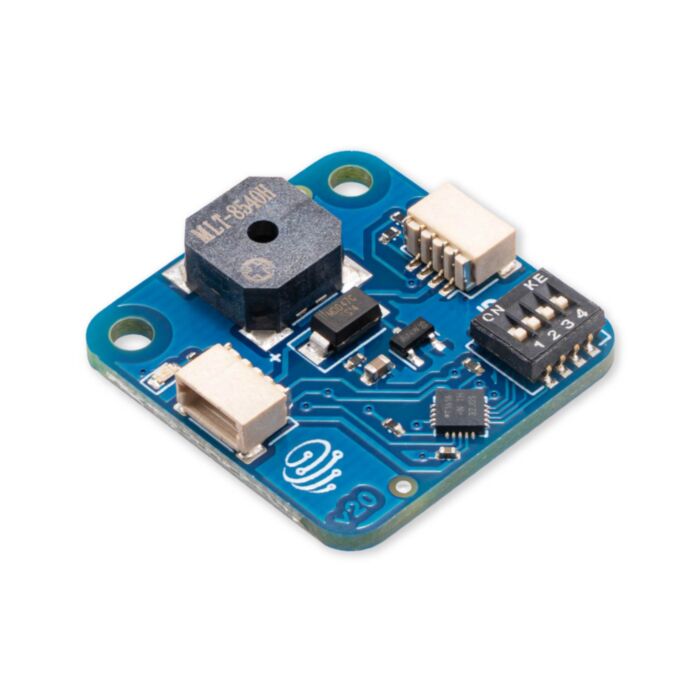

PiicoDev Buzzer Module

Rating:
100% of 100
SKU: CE08219 Brand: PiicoDev Guides (3)
CE Original
Play simple tones or even melodies - add an audible alert to your project.
$9.10 AUD, inc GST
$8.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $7.95 (exc GST)
  • 25+ $7.69 (exc GST)
- +

114 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The PiicoDev® Buzzer Module adds audio to your project! From simple audible alerts and beeps to musical melodies - generating tones is really easy: Set the desired tone frequency and an optional duration. Combine many tones and durations in a sequence to create a melody! Get started by following the guides below. Best suited to close-range feedback about what your project is doing, these are a little quiet for something like an alarm.

  • Easily play tones/melodies
  • Add an audible alert to your project
  • User-controllable LED
  • No soldering required
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics



Getting Started Guides

Technical Specifications

  • I2C address: 0x5C or user selectable (Four hardware ID switches, or software programmable address).
  • Dimensions PCB: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • Operating Voltage: 3.3V

PiicoDev Buzzer Modules are equipped with four ID switches. Use these switches to connect two or more Buzzer Modules, or other PiicoDev devices featuring ID switches. Otherwise, they can be left in the default state - all off.

Resources:


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
