Search results for: 'multiplexer'

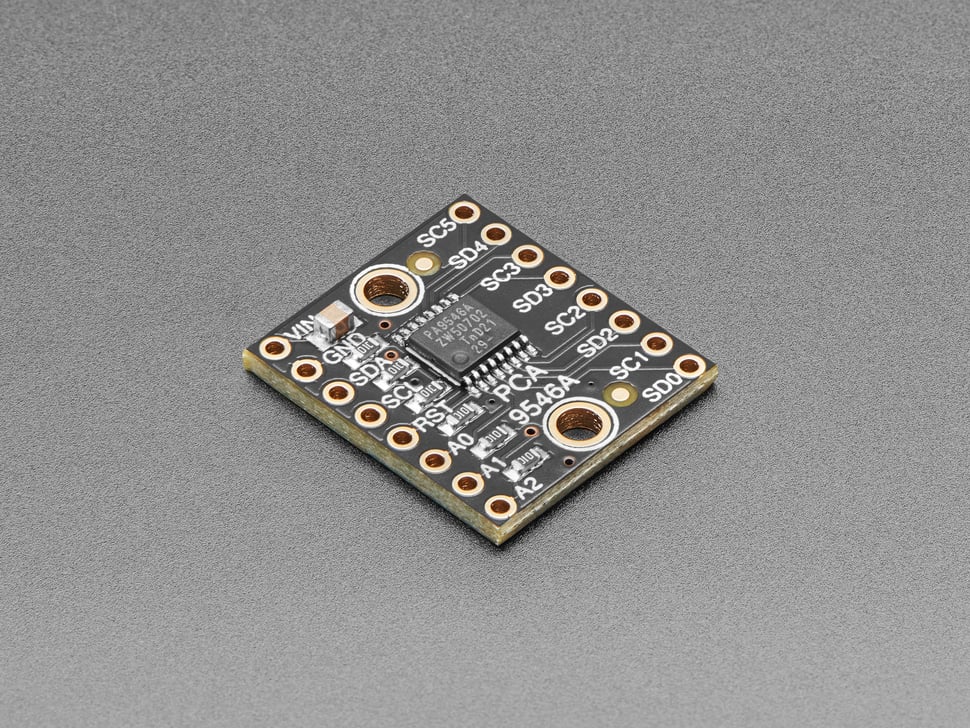

You just found the perfect I2C sensor, and you want to wire up two or three or more of them to your Arduino when you realize "Uh oh, this chip has a fixed I2C address...

You just found the perfect I2C sensor, available in a handy chainable Qwiic, or STEMMA QT package, and you want to wire up two or three or more of them to...

You just found the perfect I2C sensor, available in a handy chainable Qwiic, or STEMMA QT package, and you want to wire up two or three or four of them to...

On the same I2C port, DFRobot Gravity: I2C Multiplexer solves the address conflict and enables the normal communication with multiple same-address I2C devices. You...

This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx). It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction. To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want (see the datasheet for details). This allows you to connect up to 16 sensors to your system using only 5 pins!

Texas Instruments CD74HC4067 16-Channel multiplexer. What can you do with it? How about taking an analog to digital reading from 16 devices with only 1 ADC channel and 4 control pins. That’s right, 16 for the price of 5! 24-Pin SSOP package. Works great with our 28-Pin SSOP to DIP adapters.

The USB Switch/Multiplexer allows a USB device (or multiple devices if connected via a USB hub) to be switched between two hosts, or powered off. For...

Do you have too many sensors with the same I2C address? Put them on the SparkFun Qwiic Mux Breakout to get them all talking on the same bus! The Qwiic Mux Breakout...

This breakout board for Texas Instruments’s TPS2113A autoswitching power multiplexer allows you to select which of two power sources is connected to a load while blocking reverse current into either of the sources. It has an adjustable current limit that can be set as high as 2 A and an adjustable switching threshold. Each input power rail on the multiplexer can be supplied with 2.8 V to 5.5 V, and the board also breaks out a USB Micro-B connector that can be used to supply one of the rails.

The SparkFun Multiplexer Breakout provides access to all pins and features of the 74HC4051, an 8-channel analog multiplexer/demultiplexer. The 74HC4051 allows you to turn four I/O pins into eight multifunctional, individually selectable signals, which can be used to do everything from driving eight LEDs to monitoring eight potentiometers.

You just found the perfect I2C sensor, and you want to wire up two or three or more of them to your Arduino when you realize "Uh oh, this chip has a...

The bidirectional USB 3 Multiplexer ('mux') allows either a single USB device (or multiple devices when using a USB hub) to be switched between two USB...

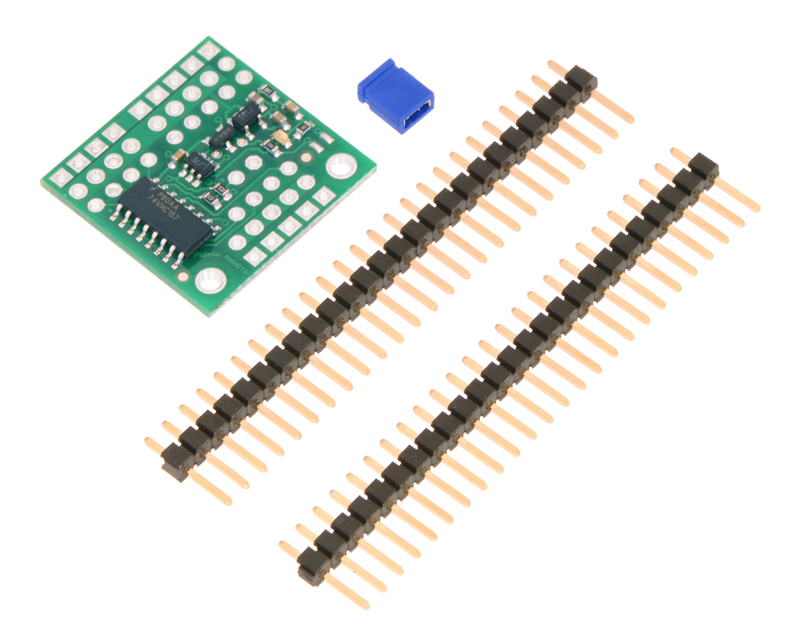

This compact four-channel multiplexer of hobby radio control pulses allows for easy switching between two independent signal sources. An auxiliary channel selects whether the output comes from the master or the slave source. The activation threshold and direction are configurable. Surface-mount components are pre-assembled on the PCB, but through-hole components are not installed and require soldering.

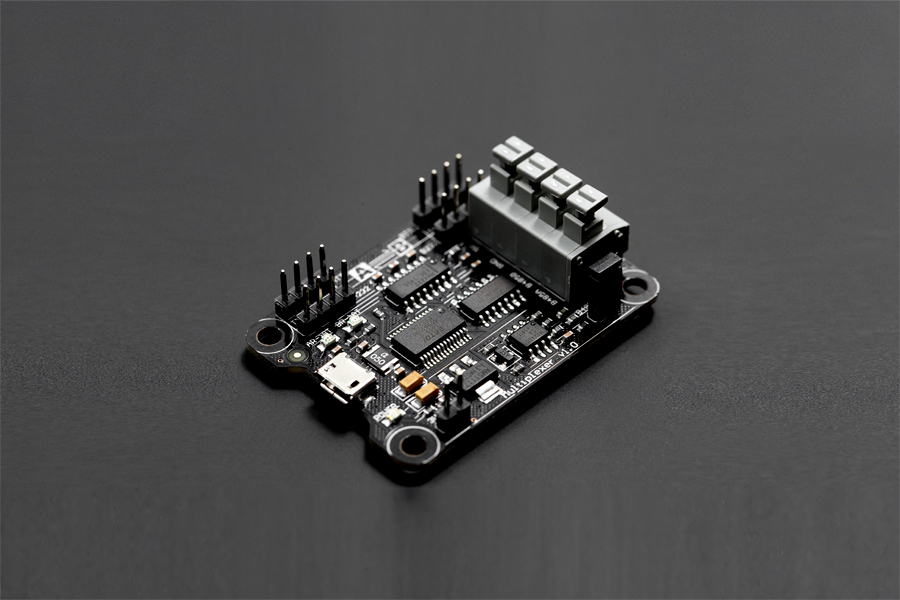

Multiplexer has a set of interfaces for a variety of multi-function adapter plates. It supports USB, TTL, RS232, RS485 interfaces between the system conversions. What's more powerful is that it also supports one input multiple outputs, which greatly facilitates the communication between various controllers.

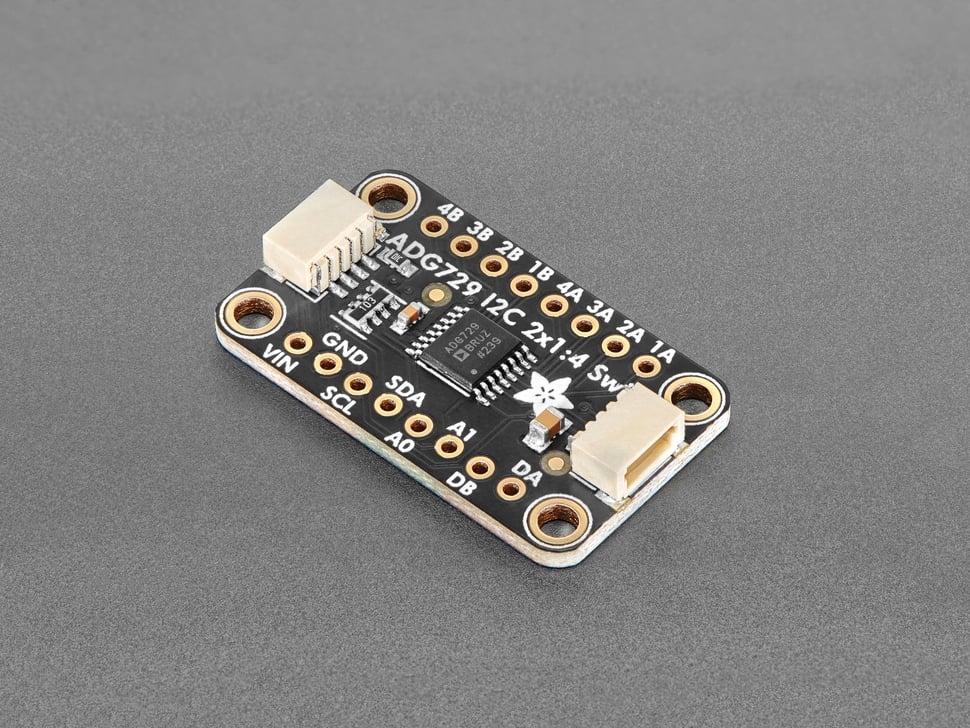

Analog switches are a solid state alternative to relays, when you want a smaller, lower-power technology that won't wear out mechanically. And, as the...

Explore the HDMI Matrix 4:2; a versatile switch offering 4 HDMI inputs and 2 outputs for a streamlined multimedia setup. Ideal for hobbyists and tech enthusiasts, this compact solution supports seamless device management without the need for additional software.
