10 Segment Light Bar Graph LED Display - Yellow

Rating:
100% of 100
SKU: ADA1922 Brand: Adafruit
Make a small linear display with a glowing bright yellow color using this elegant LED bargraph. The color on this bargraph is similar to Adafruit's amber display but just...
$3.55 AUD, inc GST
$3.23 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 09 and Dec 16

Quantity Discounts:

  • 10-25 $3.10 (exc GST)
  • 25+ $3.00 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

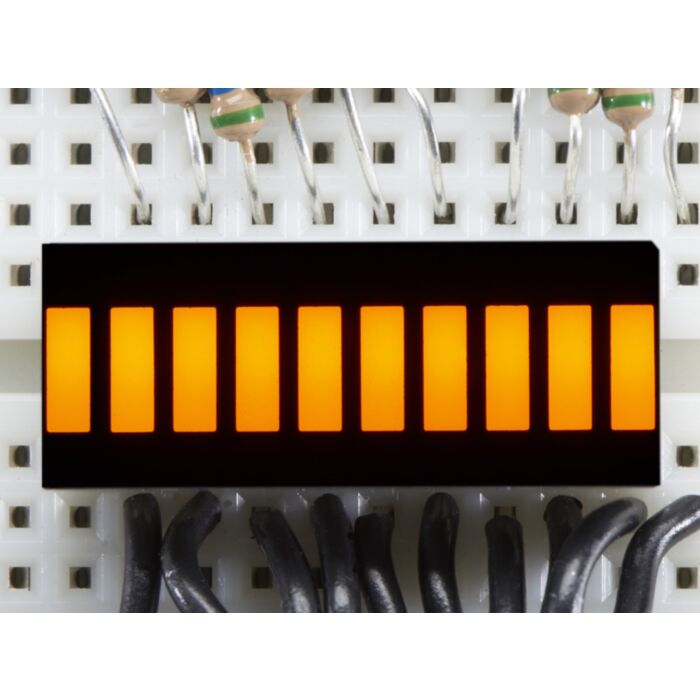

Make a small linear display with a glowing bright yellow color using this elegant LED bargraph. The color on this bargraph is similar to Adafruit's amber display but just a bit brighter and with a bit more yellow mixed in.

Only 1" long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins,10 on each side, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.

There is a playground article about bargraph displays but that one is for non-multiplexed displays. You should also check out the tutorials introducing matrices for ideas on how to drive a multiplexed bargraph.

Technical Details

Datasheet

Dimensions:

  • 25.5mm x 10mm x 6.5mm / 1" x 0.4" x 0.25"
  • Height with Pins: 14.5mm / 0.6"
  • Weight: 2.5g

This product is listed in:

Components & Parts>LEDs>Bar Graph
