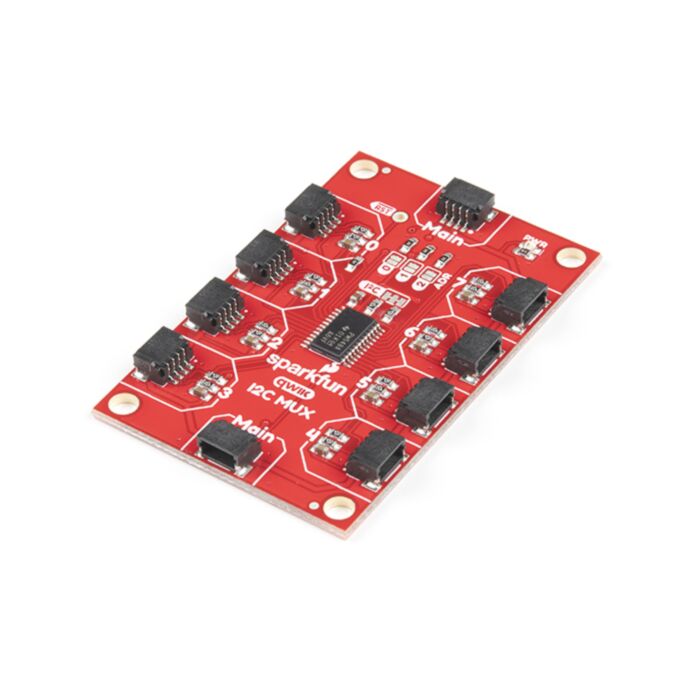

SparkFun Qwiic Mux Breakout - 8 Channel (TCA9548A)

SKU: BOB-16784 Brand: Sparkfun
Do you have too many sensors with the same I2C address? Put them on the SparkFun Qwiic Mux Breakout to get them all talking on the same bus! The Qwiic Mux Breakout...
$21.90 AUD, inc GST
$19.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 27th of Feb

Quantity Discounts:

  • 10-25 $19.31 (exc GST)
  • 25+ $18.91 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Do you have too many sensors with the same I2C address? Put them on the SparkFun Qwiic Mux Breakout to get them all talking on the same bus! The Qwiic Mux Breakout enables communication with multiple I2C devices that have the same address that makes it simple to interface with. The Qwiic Mux also has eight configurable addresses of its own, allowing for up to 64 I2C buses on a connection. To make it even easier to use this multiplexer, all communication is enacted exclusively via I2C, utilizing our handy Qwiic system.

The Qwiic Mux also allows you to change the last three bits of the address byte, allowing for eight jumper selectable addresses if you happen to need to put more than one Qwiic Mux Breakout on the same I2C port. The address can be changed by adding solder to any of the three ADR jumpers. Each SparkFun Qwiic Mux Breakout operates between 1.65V and 5.5V making it ideal for all of the Qwiic boards Sparkfun produce in house.

The SparkFun Qwiic connect system is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started with the SparkFun Qwiic Mux Breakout Guide

Features

  • Operating Voltage: 1.65V - 5.5V
  • Operating Temperature: -40 - 85° C
  • I2C Address: 0x70 (default) up to 0x77
  • 10x Qwiic Connectors
    • 2x Pass Through (Daisy Chain)
    • 8x Channels

Revision Changes: With this revision of the SparkFun Qwiic Mux Breakout, Sparkfun have only made one change to improve the ease of use of the board, listed below. If users are unsure about which version they purchased, please refer to the product pictures.

  • The SparkFun Qwiic Mux Breakout includes an additional Qwiic connector with a pass through trace to bypass the MUX and daisy chain other Qwiic boards.
