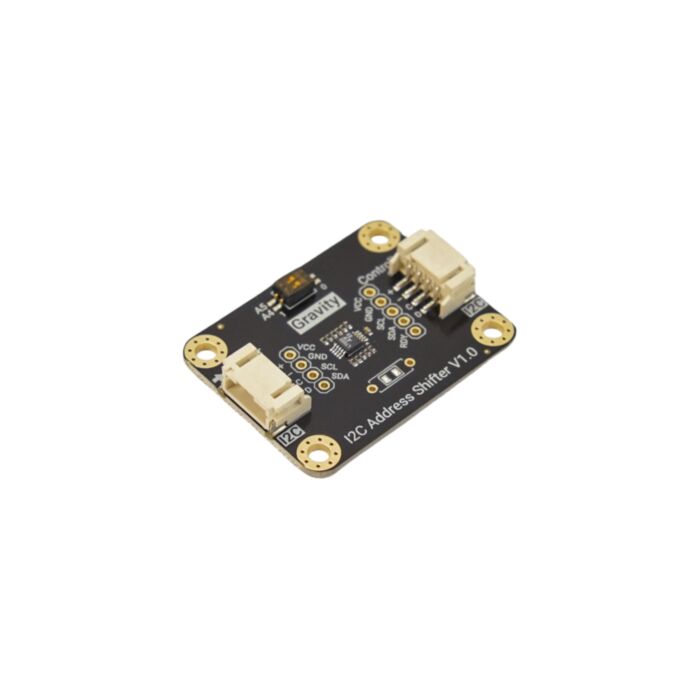

Gravity: I2C Address Shifter - I2C Conflict Resolver for Arduino & Raspberry Pi

SKU: DFR1193 Brand: DFRobot

Easily change I2C sensor addresses with DFRobot’s plug-and-play I2C address shifter. Fix I2C conflicts, support multiple sensors, and simplify wiring....

$11.73 AUD, inc GST

$10.66 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 28 and May 01

The DFRobot I2C Address Shifter is designed to modify the I2C address of connected sensors for Arduino, Raspberry Pi, and other development boards. By inserting this module between the host board (such as an Uno R3 or Pi 4) and an I2C sensor, identical sensors can operate simultaneously on the same bus. The plug-and-play module features a compact design for easy integration into I2C cascading systems, with four switch-selectable addresses and over 20 additional options via resistor soldering.

Plug-and-Play Hardware Solution

The I2C Address Shifter eliminates the need for software-based port switching, simplifying system integration. Address conversion occurs entirely within the module, ensuring compatibility without modifying existing code or risking I2C timing conflicts.

Figure: Wiring Diagram of I2C Address Shifter, sensors and Arduino UNO

Flexible Address Configuration

With four address options accessible via DIP switches and expandable options through resistor soldering, the module supports diverse addressing requirements. This flexibility allows users to deploy multiple identical sensors on a single I2C bus effortlessly.

Compact and Universal Compatibility

The module’s small form factor and broad compatibility with I2C sensors make it ideal for space-constrained projects. It seamlessly integrates into existing setups without requiring additional hardware adjustments.

Specification

Woking voltage: 2.25~5.5V DC

Working current: [email protected]

Working temperature: 0~70?

Dimension: 42*32mmMounting hole: f3.0mm

Documents

Product wiki

Tutorial: How to use the Gravity: I2C Address Shifter with Arduino UNO

Tutorial: How to Resolve I2C Address Conflict
