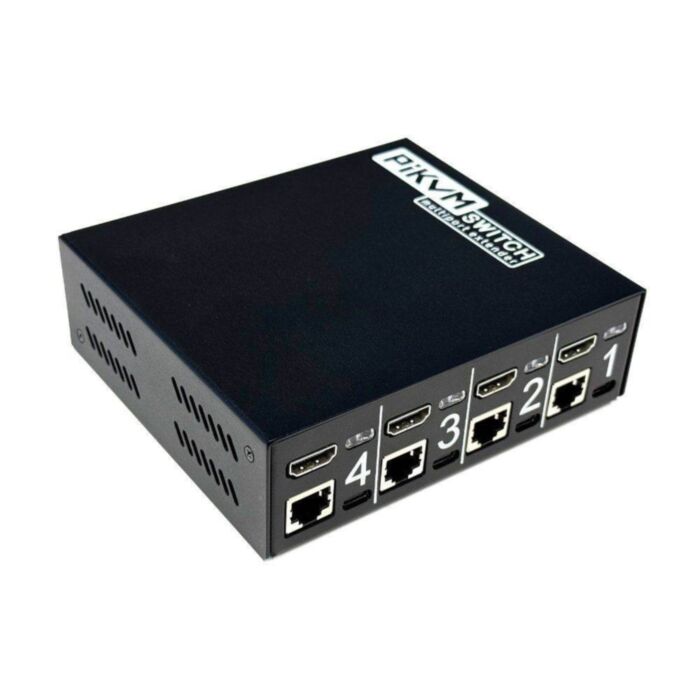

PiKVM Switch Multiport Extender

SKU: CE10137 Brand: HiPi.io

This allows a single KVM to control and monitor multiple computers.

$434.95 AUD, inc GST

$395.41 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 23 and May 05

Quantity Discounts:

2+ $387.50 (exc GST)
5+ $375.64 (exc GST)

PiKVM Switch Multiport Extender is compatible with PiKVM V4 Plus and PiKVM V3.

Not compatible with PiKVM V4 Mini due to the lack of available USB host ports.

The PiKVM Switch Multiport Extender enables one PiKVM device to view and control multiple computer targets connected to each port from a web UI. Up to five Switch Multiport Extenders can be daisy-chained to provide 20 ports, allowing a single PiKVM to control and manage one of 20 connected targets. ATX statuses and controls are available for all connected targets simultaneously.

The PiKVM Switch Multiport Extender is fully plug-and-play. It is compatible with PiKVM models V4 Plus, V3, V2, and V1.

Compatibility

Requires one supported and configured PiKVM. List of supported PiKVMs:

PiKVM V4 Plus
PiKVM V3
PiKVM V2, V1 DIY models

Features

A competitive & cost-effective solution – A single PiKVM can manage up to five chained switch units, enabling control of multiple targets while minimizing costs and maintenance efforts.
Each PiKVM Switch Multiport Extender unit can control 4 targets.
Switch functionality integrated into the PiKVM interface – Use the popular interface, now expanded to support the number of targets available through the connected switches.
Operational insights with multifunctional status LEDs – Monitor detected targets, selected ports, and the switch's overall status in real time.
Rapid switching – With an advanced HDMI dummy plug function, you can switch between target computers significantly faster than competing solutions!
Automatic firmware updates with PiKVM OS - Once PiKVM is updated, the main switch update will simply deploy to its neighbors for version uniformity and improved stability. Video inputs feature dedicated EDID configuration and complete control over the connection state of each port.
Ready to use – Includes a power supply, ATX adapters for power and AUX control, brackets, and all the cables needed to get started!

Specifications

Power:
- Power Input: 12V, 0.5A DC, 5.5x2.1mm (Power supply is included)
- Peak power consumption: Up to 6W (0.5A/12V)
- Built-in watchdog circuitry
Connectivity/Interfaces:
- 4x HDMI input ports: Video source from the target computer
- 4x USB-C 2.0 “OTG”: Keyboard and mouse emulation for the target computer
- 4x ATX RJ-45: Special port for target power control or AUX
- HDMI uplink/downlink: HDMI signal to PiKVM unit or to daisy-chain multiple units
- USB-C female “CTL”: Switch management from PiKVM
- USB-C female “OTG”: External device emulation/mass storage from PiKVM
Video/Audio:
- Supported resolutions: up to 1920x1200@60Hz
- Audio capture mode: HDMI audio capture support
Environmental:
- Operating temperature range: 0°C to 50°C
- Storage temperature range: -20°C to 60°C
Dimensions:121 x 137 x 44mm
Weight: 0.6 kg

Connectivity

1. HDMI video input port	10. Multifunctional status LED (Downlink)
2. Multifunctional status LED	11. Power Output to other Switch
3. Port Number	12. USB Control port to PiKVM
4. USB 2.0 OTG connector	13. Switch Reset button
5. RJ45 ATX control port	14. USB OTG port to PiKVM
	15. Activity LED (Yellow)
6. HDMI video output port to PiKVM	16. Switch Boot button
7. Multifunctional status LED (Uplink)	17. Power LED (Green)
8. Power Input 12V 0.5A	18. USB Control port to other Switch
9. HDMI video input port from other Switch	19. USB OTG port to other Switch

12V 2A AC Power Supply, International Plugs, DC 5.5x21mm
DC Barrel Jack Cable, 5.5x2.1mm 90Deg Male, Black, 30cm
2x USB3.0 Cable, USB-C Male, Black, 30cm
USB-A Male To USB-C Female Adapter
HDMI 2.0 Cable, Black, 30cm
4x ATX Board & Wire Set
4x ATX Bracket Set

Resources

PiKVM Handbook: Switch Multiport Extender device guide
