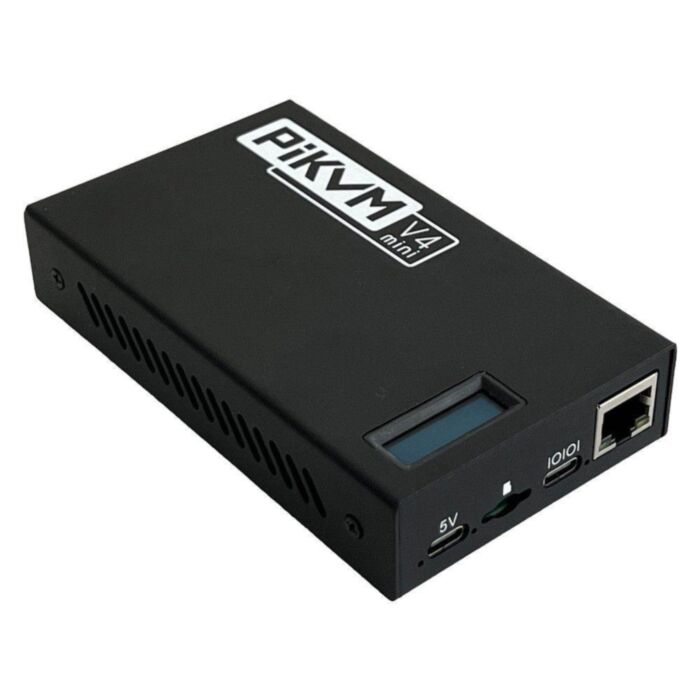

PiKVM V4 Mini

SKU: CE09771 Brand: HiPi.io

The next generation of Raspberry Pi based KVM over IP. Manage your servers or PC remotely! PiKVM is a feature-rich, production grade, open-source, Raspberry Pi based KVM over IP device.

$434.95 AUD, inc GST

$395.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

2-5 $387.50 (exc GST)
5+ $375.64 (exc GST)

PiKVM V4 Mini is the compact and budget-friendly version of PiKVM V4 Plus with all the essential features. It is small, cost-effective, and powerful!

^{Please note that this does not come with an AU adapter.}

Features

Capture video signal up to 1920x1200@60 Hz with audio and deliver it to your browser using WebRTC and efficient H.264 encoding.
Transfer your mouse and keyboard actions to a remote PC.
Take full control of a remote PC’s power: remote reset or reboot using the actual hardware reset & power buttons connector functions.
Access to all configuration settings of a remote computer like tweaking UEFI/BIOS settings to do some overclocking!
Boot a controlled PC using any OS you need using mass storage device emulation support. You can even reinstall the system remotely!
Fanless design with a passive heatsink for quiet operation.
Includes a locator LED simplifying your device search.
Improved power consumption in idle mode: just 2.67 Watts!

Specifications

Raspberry Pi Compute Module 4	CM4102000 with 2GB of RAM, WiFi, and Bluetooth
Connection type	USB-C
Power type	DC 5.1V, 3A
Power failure option	Internal supercapacitor for the real time clock support
HDMI female	HDMI source input
USB-C female	For the keyboard, mouse, mass storage, and other external device emulation)
USB-C female	Serial console management port
Micro SD card slot	For the OS storage
ATX RJ-45	Special port for power control or AUX
WiFi	Optional WiFi b/g/n support with internal/external antenna
LED indicators	Power, activity, console power, search led, HDMI source engaged
OLED display	OLED 128x32 0.91” white
Supported resolutions	Up to 1920x1200@60Hz
Video compression methods	MJPEG, H.264
Audio capture mode	HDMI audio capture support
Peak power consumption	Up to 12W (2.6A/5V)
Operating temperature	0°C to 50°C
Storage temperature	-20°C to 60°C
Size	120 x 68 x 24mm
Weight	0.35 kg

Package Contents

PiKVM V4 Mini device
Micro SD card with pre-imaged PiKVM software
ATX control board
ATX connection cables
ATX installation brackets
1 x Ethernet cable
1 x ATX cable
1 x USB C to USB A cable
5V 3.1A USB C Power Supply (international adapters)
