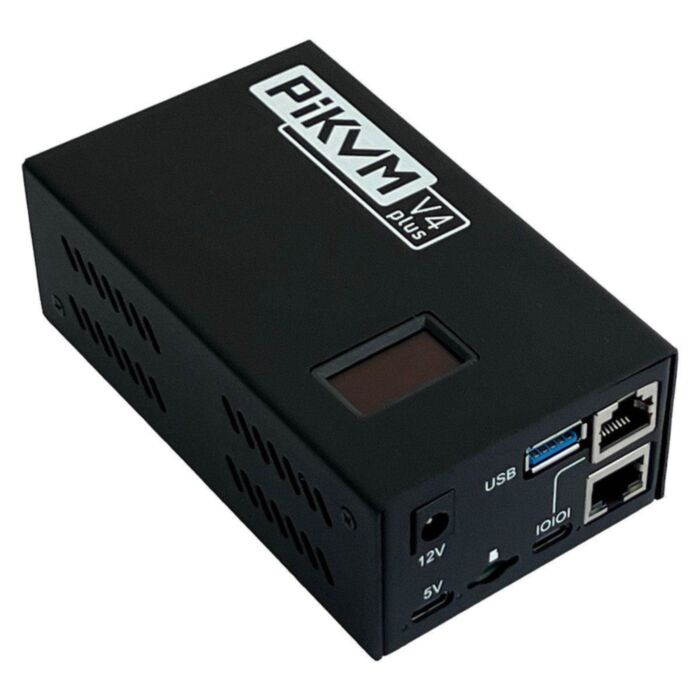

PiKVM V4 Plus is the most feature-rich edition! Designed to be the most advanced and versatile PiKVM, it will assist you in the most unique and complex scenarios of tech support or remote system access/management.
Raspberry Pi Compute Module 4 | CM4102000 with 2GB of RAM, WiFi, and Bluetooth |
Connection type | USB-C |
Power type | DC 12V, 2A |
Power failure option | Internal supercapacitor for the real time clock support |
HDMI female | HDMI source input |
USB-C female | For the keyboard, mouse, mass storage, and other external device emulation) |
USB-C female | Serial console management port |
Micro SD card slot | For the OS storage |
ATX RJ-45 | Special port for power control or AUX |
WiFi | Optional WiFi b/g/n support with internal/external antenna |
LED indicators | power, activity, console power, search led, HDMI source engaged |
OLED display | OLED 128x32 0.91” white |
Supported resolutions | up to 1920x1200@60Hz |
Video compression methods | MJPEG, H.264 |
Audio capture mode | HDMI audio capture support |
Peak power consumption | Up to 24W (2A/12V) |
Operating temperature | 0°C to 50°C |
Storage temperature | -20°C to 60°C |
Size | 120 x 68 x 44mm |
Weight | 0.35 kg |
