10 Segment Light Bar Graph LED Display - Yellow-Green

SKU: ADA1923

$2.95 AUD, inc GST
$2.68 AUD, exc GST

More Views

10 Segment Light Bar Graph LED Display - Yellow-Green
2.95 AUD

SKU: ADA1923

$2.95 AUD, inc GST
$2.68 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

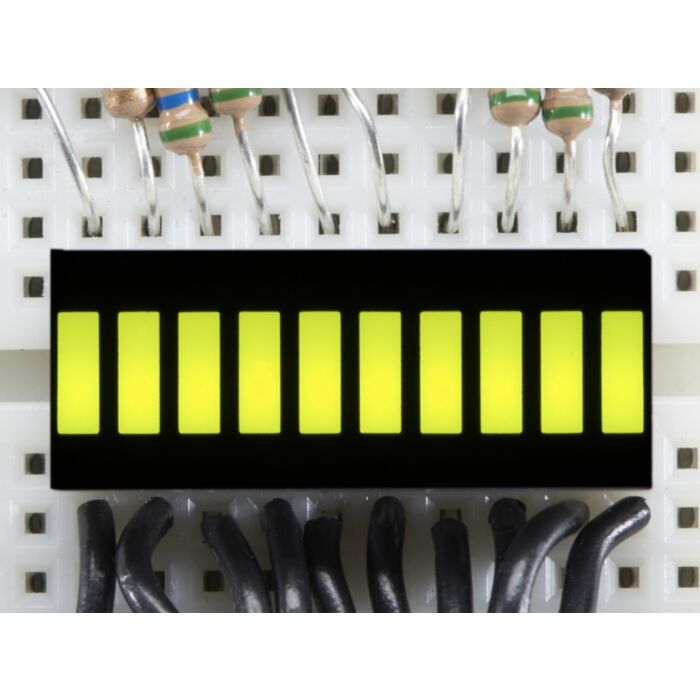

Make a small linear display with a glowing yellow-green color using this elegant LED bargraph. Only 1" long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins, 10 on each side, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.

There is a playground article about bargraph displays but that one is for non-multiplexed displays. You should also check out the tutorials introducing matrices for ideas on how to drive a multiplexed bargraph.

Technical Details

Datasheet

Dimensions:

  • 25.5mm x 10mm x 6.5mm / 1" x 0.4" x 0.25"
  • Height with Pins: 14.5mm / 0.6"
  • Weight: 2.5g
