64x64 RGB LED Matrix - 2.5mm Pitch - 1/32 Scan

SKU: ADA3649 Brand: Adafruit
Winter time can be rough in the city. The sky is gray. The weather is unpredictable. So slough off those seasonal blues with some Times Square razzle dazzle from...
$134.95 AUD, inc GST
$122.68 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 06

Quantity Discounts:

  • 5-10 $117.77 (exc GST)
  • 10+ $114.09 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

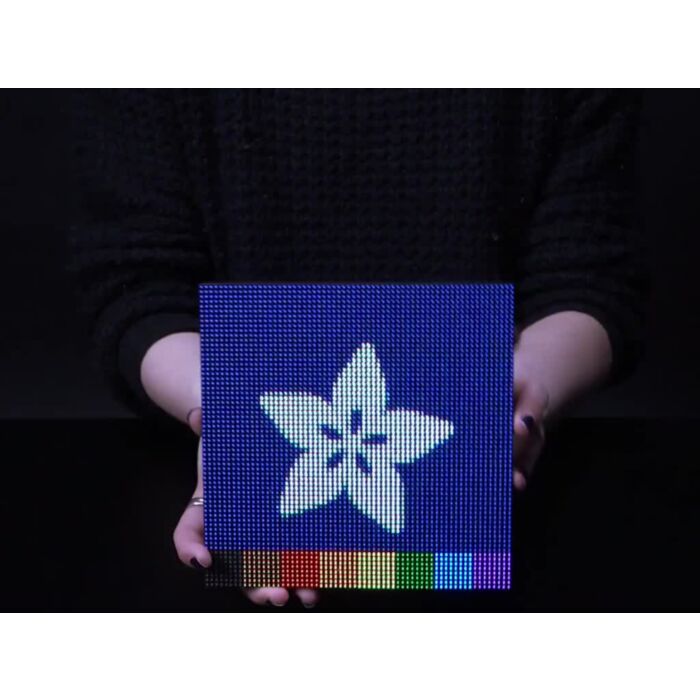

Winter time can be rough in the city. The sky is gray. The weather is unpredictable. So slough off those seasonal blues with some Times Square razzle dazzle from this sweet, ultra-high-density 64x64 RGB LED Matrix. These panels are typically used to make video walls. Here in New York Adafruit see them on the sides of buses and on top of taxi cabs displaying animations or video advertisements. Adafruit thought they looked really cool, so they picked up a few boxes of them from a factory. They have 4,096 bright RGB LEDs arranged in a 64x64 grid at a 2.5mm pitch.

WARNING! These 64-pixel tall matrixes use a non-standard 5-address multiplexing system! WARNING! Many add-ons or drivers use only a 4-address (ABCD) setup. Right now the only board Adafruit have that can use these big matricies is Adafruit's RGB Matrix Bonnet for Raspberry Pi, and you'll need to connect a solder jumper. Other libraries such as Adafruit's Arduino library, or Adafruit's HDMI driver boards don't support 5-address multiplexing!Full Kit Contents:

  • 64x64 RGB panel
  • IDC ribbon cable (~200mm)
  • power cable (~480mm)
  • 4 mounting screws and mini-magnets.

Technical Details

  • Brightness: 2800cd/square meter
  • Size: 160x160mm
  • Pitch: 2.5M
  • 5 Addressable Pins
  • Scan: 1/32
  • Refresh Frequency: >=400HZ
  • Waterproof Class: IP43
  • Weight: 204.8g (only matrix panel). 255g (w/ components)

Best for indoor use



Product Dimensions: 160.0mm x 160.0mm x 17.6mm / 6.3" x 6.3" x 0.7"

Product Weight: 204.8g / 7.2oz
