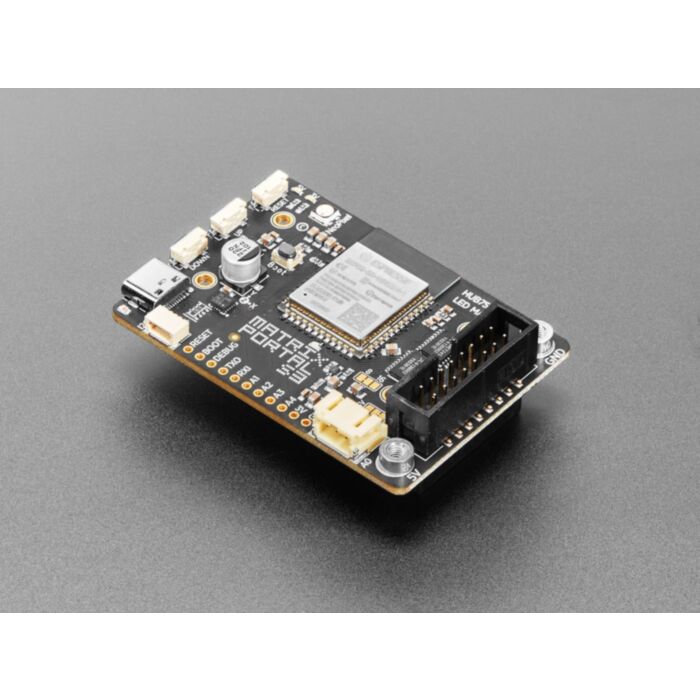

Adafruit Matrix Portal S3 CircuitPython Powered Internet Display

SKU: ADA5778 Brand: Adafruit
Coming soon! Sign up to be notified when we have these in stockFolks love our wide selection of RGB matrices and accessories for making custom colorful...
$40.50 AUD, inc GST
$36.82 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 09 and Apr 14

Quantity Discounts:

  • 10+ $35.35 (exc GST)
  • 25+ $34.24 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Coming soon! Sign up to be notified when Adafruit have these in stock

Folks love Adafruit's wide selection of RGB matrices and accessories for making custom colorful LED displays... and Adafruit's RGB Matrix Shields and FeatherWings can be quickly soldered together to make the wiring much easier. But what if Adafruit made it even easier than that? Like, no solder, no wiring, just instant plug-and-play? Dream no more - with the Adafruit Matrix Portal S3 add-on for RGB Matrices, there's never been an easier way to create powerful Internet-connected LED displays.

You can plug directly into the back of any HUB-75 compatible display (all the ones Adafruit stock will work) from 16x32 up to 64x64 or use the stock 2x8 IDC cables to plug into the front. Use the included screws to attach the power cable to the power plugs with a common screwdriver, then power it with any USB C power supply. Chain dozens of displays for long stretches, or you can panelize them in a grid for bigger displays. For larger projects, power the matrices with a separate 5V power adapter.

Then code up your project in CircuitPython or Arduino, Adafruit's Protomatter matrix library works great on the ESP32-S3 chipset, knowing that you've got the wiring and level shifting all handled. Here's what you get:

  • ESP32-S3 processor, 8 MB flash, 2 MB of SRAM, with full Arduino or CircuitPython support
  • WiFi  and Bluetooth LE baked right in, full Arduino support. CircuitPython only supports WiFi at this time, not BLE on the S3 chip.
  • USB Type C connector for data and power connectivity
  • I2C STEMMA QT connector for plug-n-play use of any of Adafruit's STEMMA QT devices or sensors can also be used with any Grove I2C devices using this adapter cable
  • JST 3-pin connector that also has analog input for quick connection with any JST PH 2.0mm pitch cable.
  • LIS3DH accelerometer for digital sand projects or detecting taps/orientation.
  • GPIO breakout strip - has reset, boot selection, TX debug output, and 6 GPIO including 4 analog inputs with PWM, SPI, or I2S support for adding other hardware.
  • Address E line jumper for use with 64x64 matrices (check your matrix to see which pin is used for address E, Adafruit default to pin 8
  • Two user interface buttons + one reset button
  • Indicator NeoPixel and red LED
  • Green power indicator LEDs for both 3V and 5V power
  • 2x10 socket connector fits snugly into 2x8 HUB75 ports without worrying about 'off by one' errors
  • 2x8 IDC plug connector works with standard cables that come with matrices.

The Matrix Portal uses an Espressif ESP32-S3 Wi-Fi+BLE chipset, and has dropped the SAMD51 from the original Matrix Portal due to silicon shortages. But turns out the S3 is really great at doing all the work of the original all on its own:

  • The S3 has a parallel output drive peripheral which means that controlling the matrix is done without bitbanging.
  • The S3 has two cores so one can be dedicated to WiFi networking or matrix control while the other runs your code.
  • With native USB, its easy to have it act like a keyboard, or mouse, or MIDI device and it also has plenty of I2C, SPI, I2S, UART and analog inputs.
  • Lots of memory: 8MB of Flash means plenty of space for code, files, GIFs and more. 2MB of PSRAM means you can read and parse a lot of IoT data and still have plenty of RAM for the matrix display buffers.
  • The only real thing missing from the original Matrix Portal is the S3 does not have an analog output DAC pin, Adafruit recommend an I2S amplifier for audio instead.

Comes with one fully programmed and assembled MatrixPortal, preprogrammed with a basic display demo for 32x64 LED matrices.

Does not come with an RGB Matrix (use any HUB75 compatible matrix) or a USB type C power supply!

Technical Details

Product Dimensions: 63.6mm x 44.3mm x 20.0mm / 2.5" x 1.7" x 0.8"

Product Weight: 18.6g / 0.7oz
