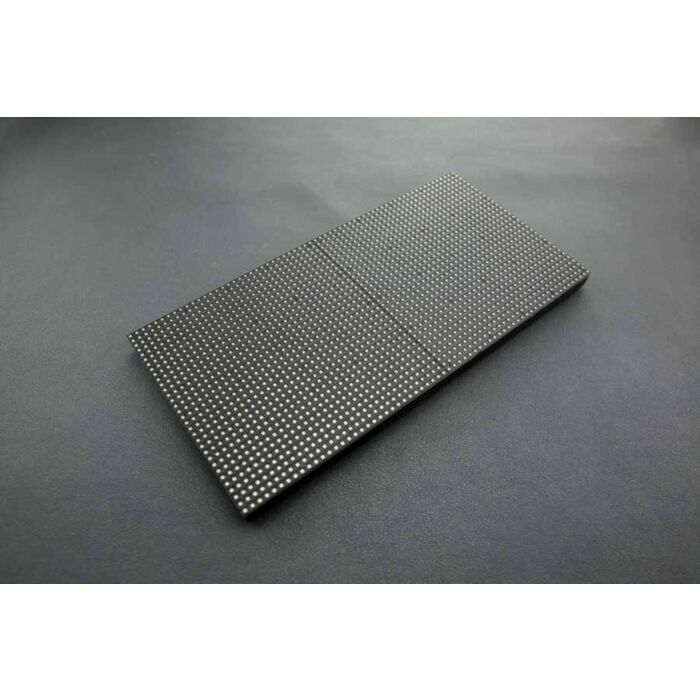

64x32 RGB LED Matrix Panel (4mm pitch)

Rating:
100% of 100
SKU: DFR0460 Brand: DFRobot
This is a 64x32 RGB LED Matrix Panel, it has 2048 full-color RGB LEDs in all. Each LED can be independently controlled. To control this LED Matrix, at least 13 digital...
$83.45 AUD, inc GST
$75.86 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 30 and May 06

Quantity Discounts:

  • 6-12 $73.59 (exc GST)
  • 12+ $72.07 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This is a 64x32 RGB LED Matrix Panel, it has 2048 full-color RGB LEDs in all. Each LED can be independently controlled. To control this LED Matrix, at least 13 digital GPIOs are required. The led matrix has 2 IDC connectors (DATA_IN, DATA_OUT) on the back, you can cascade multiple panels and make a huge screen together. You are highly recommended to use microcontrollers with large RAM and high speed to control this LED, such as Raspberry Pi, and Mega 2560. Please note that the Arduino does not support all functions as its speed is not enough to run multiple panels.

What’s more, this product is a pure color LED display module with high brightness, long life and no pollution. It can be safely used both indoors and outdoors. This module can be used in harsh environments.

Note: This panel needs a 5V@4A power supply.

Specification

  • Operating voltage: DC 5V
  • Average power consumption: <500W/㎡
  • Maximum Power Consumption: <1000w/㎡
  • Pixel: 64*32=2048
  • Level of viewing Angle: ≧160°
  • Control mode: Synchronous control
  • Drive mode:1/16 scan rate
  • Repetition frequency: ≧60Hz
  • White Balance Brightness: ≧1200cd
  • Refresh frequency: ≧300Hz
  • Pixel pitch: 4mm
  • Dimension: 125mm*250mm
  • Thickness: 11mm

Documents

Parts List

  • 64x32 RGB LED Matrix Panel (4mm pitch) x1
  • IDC to XH2.54 cable x1
  • IDC to IDC cable x1
  • Power supply cable x1





This product is listed in:

Components & Parts>LEDs>Matrix
