RGB full-color LED matrix panel (2.5mm Pitch, 64x32 pixels)

SKU: WS-23707 Brand: Waveshare
RGB full-color LED matrix panel, 2.5mm Pitch, 64x32 pixels, adjustable brightness...
$34.60 AUD, inc GST
$31.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 10-25 $30.51 (exc GST)
  • 25+ $29.88 (exc GST)
- +

11 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

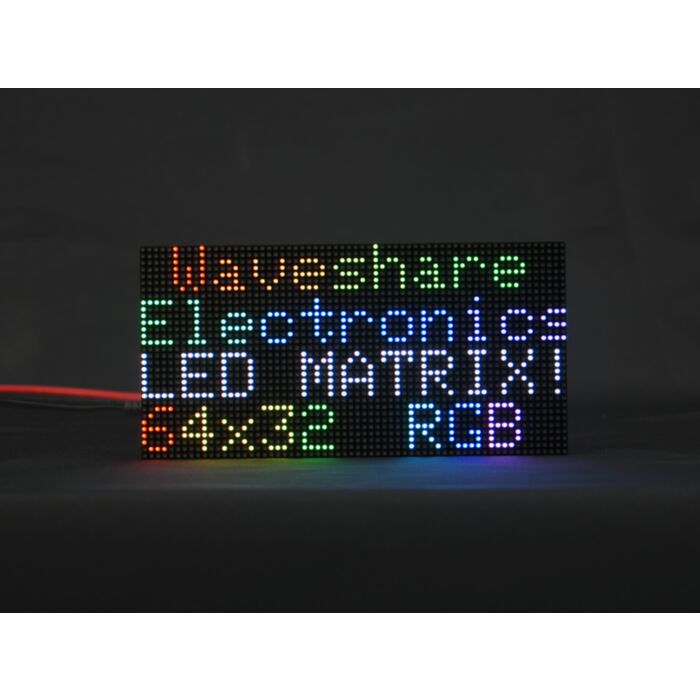

RGB full-color LED matrix panel, 2.5mm Pitch, 64×32 pixels, adjustable brightness
64×32 RGB LED matrix panel

2048 individual RGB LEDs, 2.5mm pitch

supports Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino...

Features at a glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

  • 2048 individual RGB LEDs, full-color display, adjustable brightness
  • 64×32 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation
  • 160×80mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
  • Onboard two HUB75 header, one for controller data input, one for output, chain support
  • Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Specifications
Dimensions 160mm × 80mm
Pixels 64×32=2048 DOTS
Pitch 2.5mm
Pixel form 1R1G1B
Viewing angle =140°
Control type synchronization
Driving 1/16 scan
Header HUB75
Power supply 5V / 2.5A (VH4 header input)
Power =12W
Weight 0.186 kg
Header definition
* this back view is for reference only
PCB silkscreen and layout may have small differences from batch to batch, but the software is compatible.
Pin Description Pin Description
+5V 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable

chainable design

multi LED matrix panel can be chained together to build a larger panel
via HUB75 input/output header

Each RGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when they're chained to display.
Usage scenarios

DIY maker desktop or wall mount display, signboard, environment monitor...

Product Show
Dimensions
Documents

Quick Overview

  1. RGB-Matrix-P2.5-64x32 LED matrix and accessories x1
  2. Power supply terminal adapter x1
  3. 16P wire ~30cm x1
It is recommended to use with a 5V 4A power supply
