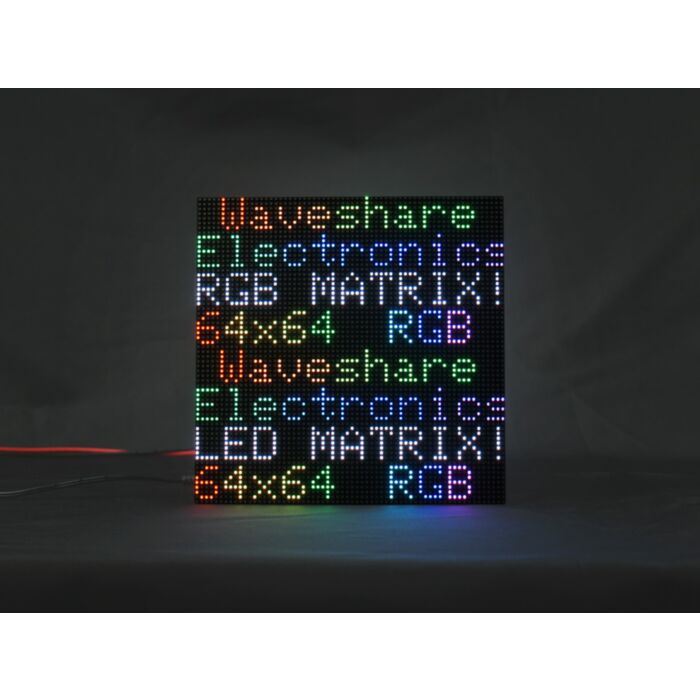

Flexible RGB full-color LED matrix panel (3mm Pitch, 64x64 pixels)

SKU: WS-23710 Brand: Waveshare
Flexible RGB full-color LED matrix panel, 3mm Pitch, 64×64 pixels, adjustable brightness and bendable PCB...
$52.60 AUD, inc GST
$47.82 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 25 and Nov 26

Quantity Discounts:

  • 6-12 $46.38 (exc GST)
  • 12+ $45.43 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Flexible RGB full-color LED matrix panel, 3mm Pitch, 64×64 pixels, adjustable brightness and bendable PCB

Note: The flexible PCB can be gently bent but can not be excessive or repeated bending, otherwise, it can cause damage

Features

  • 4096 individual RGB LEDs, full-color display, adjustable brightness
  • Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surfaces
  • 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
  • 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
  • Onboard two HUB75 header, one for controller data input, one for output, chain support
  • Provides open-source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Specifications

Dimensions 192mm × 192mm
Pixels 64×64=4096 DOTS
Pitch 3mm
Pixel form 1R1G1B
Viewing angle =140°
Control type synchronization
Driving 1/32 scan
Header HUB75
Power supply 5V / 4A (VH4 header input)
Power =20W

Header definition* this back view is for reference only PCB silkscreen and layout may have small differences from batch to batch, but software is compatible.

Pin Description Pin Description
VCC 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable



Dimensions





Resources

Wiki for Flexible RGB panel

Shipping List

  1. RGB-Matrix-P3-64x64-F LED matrix and accessories x1
  2. Power supply terminal adapter x1
  3. 16P wire ~30cm x1

It is recommended to used with a 5V 4A power supply
