Adafruit Bicolor LED Square Pixel Matrix with I2C Backpack

Rating:
100% of 100
SKU: ADA902 Brand: Adafruit
What's better than a single LED? Lots of LEDs! A fun way to make a small colorful display is to use a 1.2" Bi-color 8x8 LED Matrix. Matrices like these are 'multiplexed'...
$32.85 AUD, inc GST
$29.86 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 10 and Jun 10

Quantity Discounts:

  • 10-25 $28.67 (exc GST)
  • 25+ $27.77 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

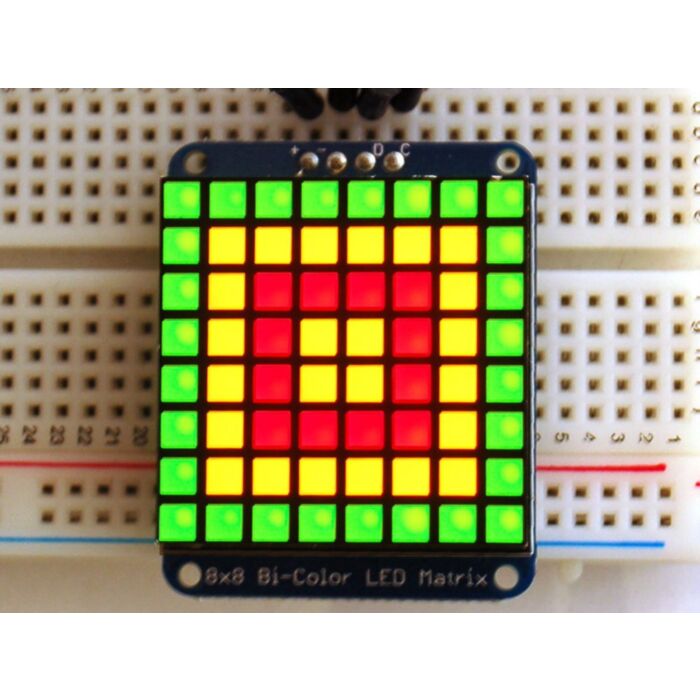

What's better than a single LED? Lots of LEDs! A fun way to make a small colorful display is to use a 1.2" Bi-color 8x8 LED Matrix. Matrices like these are 'multiplexed' - so to control all the 128 LEDs you need 24 pins. That's a lot of pins, and there are driver chips like the MAX7219 that can help control a matrix for you but there's a lot of wiring to set up and they take up a ton of space. Here at Adafruit Adafruit feel your pain! After all, wouldn't it be awesome if you could control a matrix without tons of wiring? That's where these adorable LED matrix backpacks come in. Adafruit have them in three flavors - a mini 8x8, 1.2" Bi-color 8x8 and a 4-digit 0.56" 7-segment. They work perfectly with the matrices Adafruit stock in the Adafruit shop and make adding a bright little display trivial. It's called a Bicolor LED, but you can have 3 colors total by turning on the red and green LEDs, which creates yellow. That's 3 colors for the price of 2!

The matrices use a driver chip that does all the heavy lifting for you: They have a built in clock so they multiplex the display. They use constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interface. The backpacks come with address-selection jumpers so you can connect up to four mini 8x8's or eight 7-segments/bicolor (or a combination, such as four mini 8x8's and two 7-segments and two bicolor, etc) on a single I2C bus.

The product kit comes with:

A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes.

Of course, in classic Adafruit fashion, We also have a detailed tutorial showing you how to solder, wire and control the display. They even wrote a very nice library for the backpacks so you can get running in under half an hour, displaying images on the matrix or numbers on the 7-segment. If you've been eyeing matrix displays but hesitated because of the complexity, his is the solution you've been looking for!

Technical Details

Bi-Color LED Display Datasheet

Datasheets, schematic, EagleCAD PCB files, and Fritzing available in the product tutorial

  • This board/chip uses I2C 7-bit address between 0x70-0x77, selectable with jumpers

Backpack Dimensions:

  • 33mm x 41mm x 4mm / 1.3" x 1.6" x 0.16"
  • Mounting Holes: 28mm x 36mm / 1.1" x 1.4"

This product is listed in:

Components & Parts>LEDs>Matrix
