Red 7-segment clock display - 0.56 digit height

SKU: ADA865 Brand: Adafruit
Design a clock, timer or counter into your next project using Adafruit's pretty 4-digit seven-segment display. These bright crisp displays are good for adding numeric output...
$8.70 AUD, inc GST
$7.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 03 and Jan 07

Quantity Discounts:

  • 10-25 $7.59 (exc GST)
  • 25+ $7.35 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

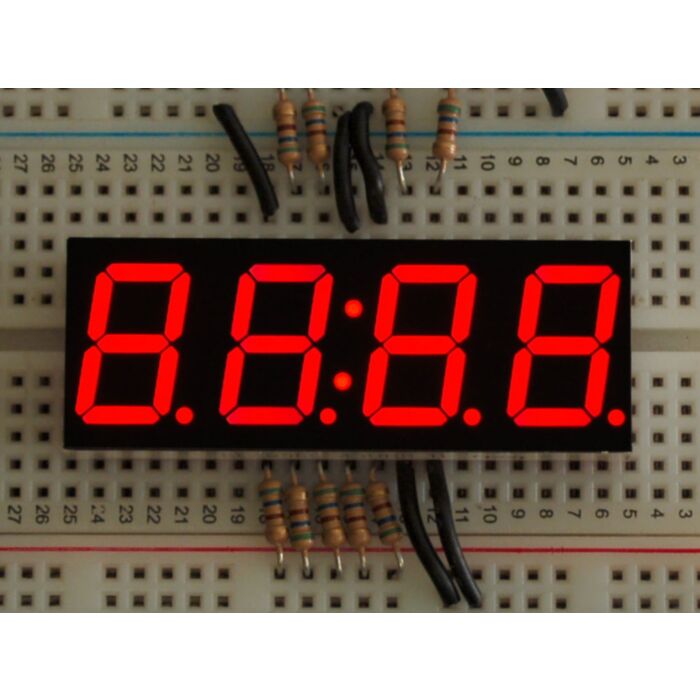

Design a clock, timer or counter into your next project using Adafruit's pretty 4-digit seven-segment display. These bright crisp displays are good for adding numeric output. Besides the four 7-segments, there are decimal points on each digit and an extra wire for colon-dots in the center (good for time-based projects).

These are ultra bright 165mcd! You can drive these with less current to get the same brightness to save power, or crank them up to 20mA and have them really bright.

These displays are multiplexed, common-cathode. What that means it that you can use a 74HC595 or just 8 microcontroller pins if you can spare them to control the 8 anodes (7-seg + decimal) at about ~15mA each, and then connect NPN transistors or a TPIC6B595 to the cathodes to sink the 8*20mA = ~120mA maximum per digit.

These come in a bright red color, We also have many other sizes and colors!

Technical Details

This is a Common Cathode LED display

Dimensions: 0.76" x 1.9" (19.3mm x 50.3mm) Weight: 8.3g
Datasheet

This product is listed in:

Components & Parts>LEDs>Segment
