RP2040-Zero, a Pico-like MCU Board Based on Raspberry Pi RP2040

Rating:
97% of 100
SKU: CE08607 Brand: Waveshare
RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040...
$6.35 AUD, inc GST
$5.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 14th of Oct

Quantity Discounts:

  • 10-25 $5.60 (exc GST)
  • 25+ $5.48 (exc GST)
- +

70 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

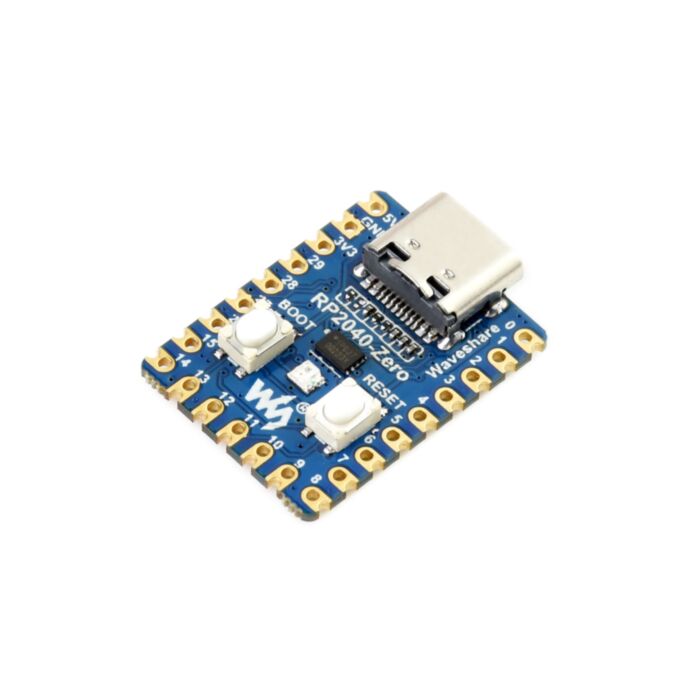

The RP2040-Zero, is a low-cost, high-performance Pico-like MCU board based on Raspberry Pi RP2040 microcontroller.

Specifications

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • The castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Compatible with all I2C devices with a clock rate of 100khz and some devices up to 400khz
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

29 × multi-function GPIO pins

Configurable pin function, allows flexible development and integration

rp2040 zero pinout

Features

rp2040 zero component features

  1. USB Type-C connector
  2. W25Q16JVUXIQ 2MB NOR-Flash
  3. BOOT button press it when resetting to enter download mode
  4. RESET button
  5. WS2812 cool RGB LED
  6. ME621low dropout LDO, max current 800MA
  7. RP2040 dual-core processor, up to 133MHz operating frequency
  8. RP2040 pins 10x solder points, 9 of which are for GPIO

Dimensions

rp2040 zero dimensions and pin spacing

Wiki:RP2040-Zero
