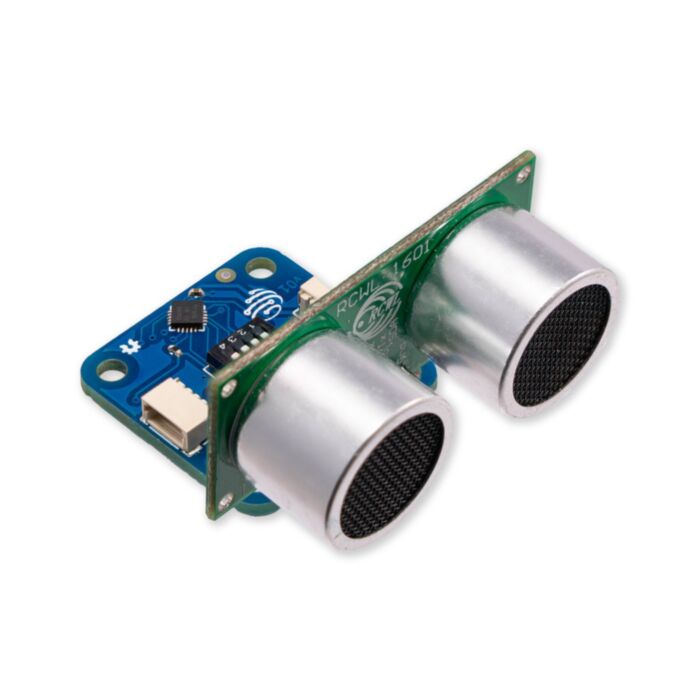

PiicoDev Ultrasonic Rangefinder

Rating:
100% of 100
SKU: CE09360 Brand: PiicoDev Guides (2)
CE Original

Use echolocation to measure distance

$10.10 AUD, inc GST
$9.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 30th of Apr

Quantity Discounts:

  • 4-12 $8.26 (exc GST)
  • 12+ $7.81 (exc GST)
  • 50+ $5.97 (exc GST)
- +

257 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Ultrasonic Rangefinders are great for detecting objects or measuring distance. They rely on echo-location - the same principle bats use to detect obstacles in their environment. These sensors usually require being manually wired into a circuit, so we made the PiicoDev® Ultrasonic Rangefinder: a combination of the ubiquitous RCWL-1601 Ultrasonic Rangefinder attached to a smart, addressable, daisy-chainable PiicoDev module. Use the great Getting Started Guide to begin with measuring distance and then remix the code to suit your own project's needs!

Features

  • Great Range - between 0.02 m and 4 m. Most effective between 0.1m and 2.4m
  • Connect many rangefinders together for more complex projects.
  • A great guide to get you started
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guides

We've prepared a getting-started guide that works with Raspberry Pi, Pico, and Micro:bit.

Technical Specifications

  • I2C Address: 0x35 (default) or user-selectable
  • Supply Voltage: 3.3 V
  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 4x M2.5

Resources



Also available are PiicoDev Starter Kits - level up your projects by learning to use a wide range of modern sensors and outputs.

PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.
