PiicoDev Transceiver 915MHz

Rating:
100% of 100
SKU: CE08757 Brand: PiicoDev Guides (2)
CE Original

Unlock wireless communication up to 100m with this long-range transceiver.

$21.90 AUD, inc GST
$19.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 25th of Jul

Quantity Discounts:

  • 4-12 $17.92 (exc GST)
  • 12+ $16.93 (exc GST)
  • 50+ $12.95 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

201 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Transceivers need friends to communicate with! We recommend purchasing a pair of Transceivers to begin experimenting.

Wireless communication is pretty amazing! You can unlock some very cool capabilities like collecting data from some distant sensor, or remote-controlling hardware. The PiicoDev Transceiver allows you to send and receive messages to other transceivers up to 100m away. Simply connect to a PiicoDev-compatible development board and follow the guide to begin sending and receiving data.

Daisy chain the Transceiver with other PiicoDev modules to create a more complex project. Use the provided Python / MicroPython library that simplifies setting up the transceiver and sending data. Transceivers will broadcast by default and can be configured with a group or address to allow for direct messaging to only intended recipients. That's especially useful for projects with multiple Transceivers where there may be a lot of messages going back and forth.

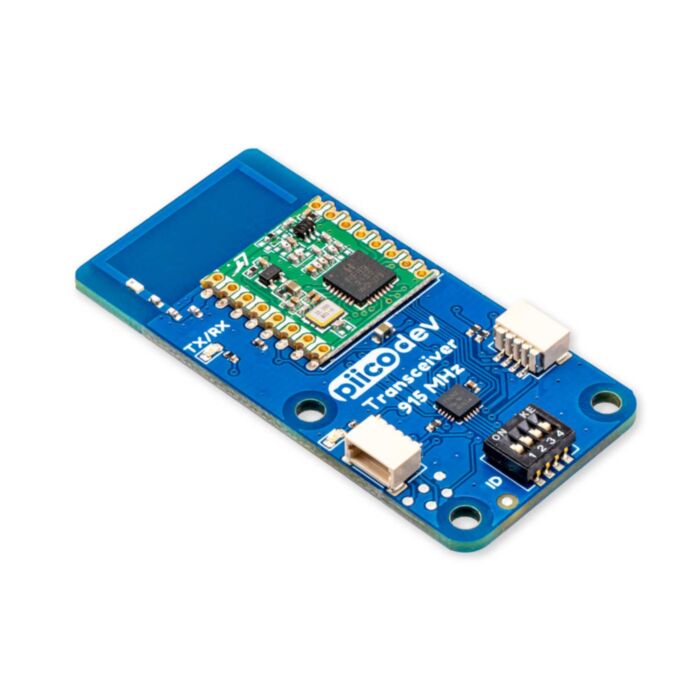

The PiicoDev Transceiver uses a HopeRF RFM69HCW radio operating at 915MHz to communicate. The on-board antenna is designed right into the PCB - for best performance, keep the antenna way from metal enclosures or other sources of interference.

Features

  • Easy, wireless communication up to 100m
  • Create your own network of connected devices.
  • Compact, on-board antenna
  • 915MHz is suitable for amateur use in Australia.
  • No soldering necessary
  • A great guide to get you started
  • 2x LEDs: Rx/Tx indicator, and user-controllable
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guide

We've prepared a getting-started guide that works with Raspberry Pi, Pico, and Micro:bit.



Technical Specifications

  • I2C Address: 0x1A (default) , hardware selectable 0x09->0x18, or software programmable 0x08->0x77
  • Supply Voltage: 3.3 V
  • Radio: RFM69HCW
    • Frequency: 915 - 928 MHz
  • Dimensions: 52 x 25.4mm
  • Mounting Holes: 3x M2.5

Resources

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.

PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.
