JST connector Kit (2.0mm)

SKU: FIT0299

$13.88 AUD, inc GST
$12.62 AUD, exc GST

More Views

JST connector Kit (2.0mm)
13.88 AUD

SKU: FIT0299

$13.88 AUD, inc GST
$12.62 AUD, exc GST
3 reviews 0 5 5


  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

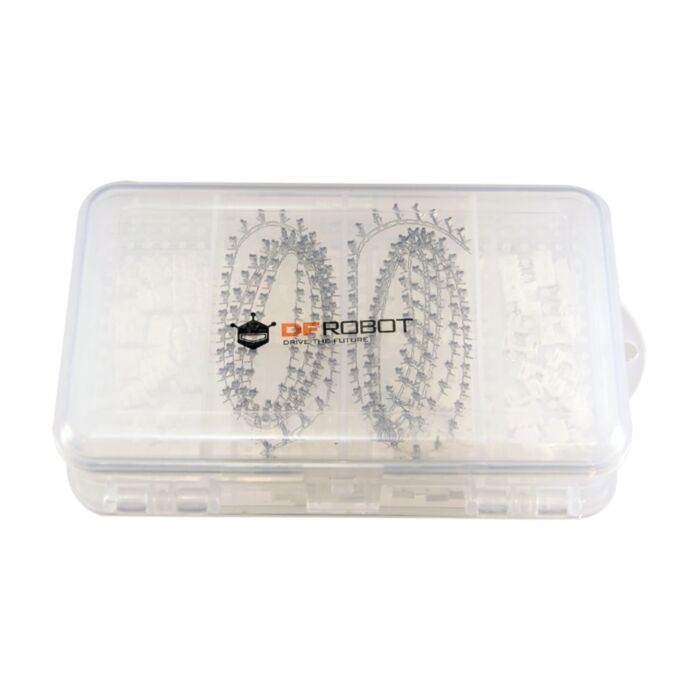

This kit includes PHR-2,PHR-3 and PHR-4 housing (20 units each), through-hole type shrouded header (20 units each)and crimp contact (100 units).
  • Pitch:2.0mm
  • Current rating:2A AC,DC (AWG #24)
  • Voltage rating:100V AC,DC
  • Temperature range:-25℃ to +85℃(including temperature rise in applying electrical current)
  • Contact resistance:Initial value/10m Ω max.
  • After environmental testing/20m Ω max.
  • Insulation resistance:1000M Ω min.
  • Withstanding voltage:800V AC/minute
  • Applicable wire:AWG#32~#24
  • Applicable PC board thickness:0.8mm~1.6mm
Shipping List
  • PHR-2 housing*20
  • PHR-3 housing*20
  • PHR-4 housing*20
  • B2B-PH-K-S through-hole type shrouded header *20
  • B2B-PH-K-S through-hole type shrouded header *20
  • B2B-PH-K-S through-hole type shrouded header *20
  • crimp contact*100
  • Two-sided Compartment Parts Box *1

This product is listed in:

Documentation and Resources:
  • How To Make and Crimp Custom Connectors
  • The wires in our circuits are often forgotten when we are planning our next big project, but the right connectors will a make your project look more professional and a lot easier to work with! In this tutorial, we are going to have a quick look at th...
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • What is a JST Connector?
  • JST is a standard of electrical connection used widely across a spectrum of electrical applications. It's defined as a Japanese Solderless Terminal and is manufactured by a company of the same name. The JST range includes a variety of families of con...

Product Comments

Customer Reviews

  1. Review by James verified purchaser

    Excellent kit and cheap. Gives a professional look to your project. Recommend using Crimping Tool: 0.08-0.5 mm² Capacity, 20-28 AWG SKU: POLOLU-1929, to make the perfect crimp. Works with 2.0mm & 2.54mm JST connectors. I tried without the tool and the results were pretty average. (Posted on 10/01/2019)

  2. Review by Greg verified purchaser

    These are the JST 2.0mm connectors used on the Anet A8 3d printer controller boards.
    Also used on the Geetech GT2560 controller.
    Great collection of connectors both male and female with a heap of pins. Great value. (Posted on 18/01/2017)

  3. Review by Ray verified purchaser

    The lack of 90 degree PCB connectors is disappointing as a lot of PCBs would use this type for edge connection, i.e. backup battery connections. The double sided container was great for small related items. (Posted on 8/07/2016)
