JST-XH 2.54mm Pitch Connector Kit - 560 Piece Kit

Rating:
100% of 100
SKU: ADA4423 Brand: Adafruit
Totaling 560 pieces, this JST-XH Connector Kit is a must-have for your workstation. You'll have enough sockets and headers to fuel your maker tendencies for days...
$59.60 AUD, inc GST
$54.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 30th of Apr

Quantity Discounts:

  • 6-12 $52.02 (exc GST)
  • 12+ $50.39 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The manufacturer has provided specifications for these connectors with a pin pitch of 2.54mm. Official JST XH series connectors use a 2.5mm pitch however for 5 or fewer pins either pitch will work interchangeably.

Totaling 560 pieces, this JST-XH Connector Kit is a must-have for your workstation. You'll have enough sockets and headers to fuel your maker tendencies for days on end!

These connectors are really common in electronics, Adafruit use the 2 pin ones for Adafruit's arcade quick-connects. Since they are 0.1" they match nicely with perf-boards, breadboards, plain header, etc.

Adafruit recommend you own a set of crimping pliers as well, such as these nice ones from Engineer - they're easier to use than trying to crimp with pliers.

Since they are nylon, they don't conduct electricity or interfere with antennas/magnetometers.

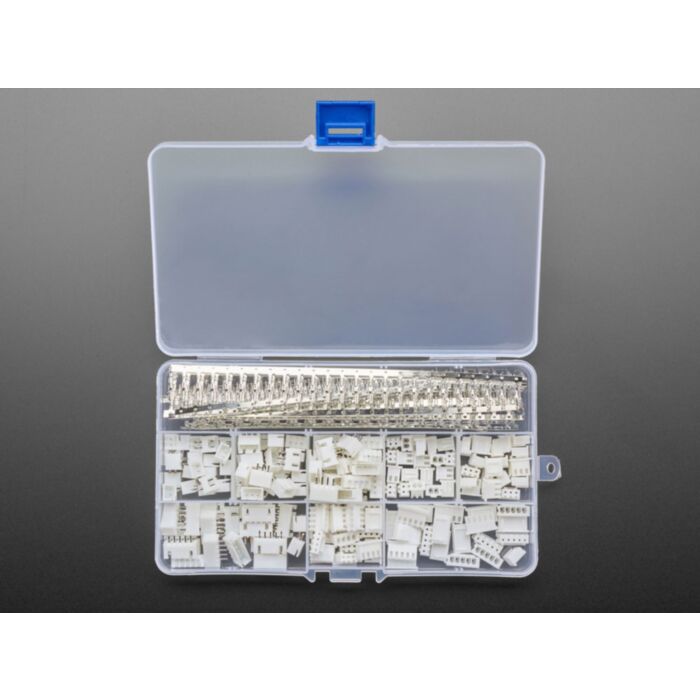

Set contains the following parts in a nice reusable storage container:

  • 20 x JST XH 2.54mm 2-pin connector
  • 20 x JST XH 2.54mm 3-pin connector
  • 20 x JST XH 2.54mm 4-pin connector
  • 20 x JST XH 2.54mm 5-pin connector
  • 20 x JST B2B-XH-A 2.54mm TH shrouded header
  • 20 x JST B3B-XH-A 2.54mm TH shrouded header
  • 20 x JST B4B-XH-A 2.54mm TH shrouded header
  • 20 x JST B5B-XH-A 2.54mm TH shrouded header
  • 200 x JST-XH 2.5mm female crimp pin
  • 200 x JST-XH 2.5mm male crimp pin

For more information on JST XH, plus specs and datasheet, check out the official JST website
