IIC LCD1602 (Gadgeteer Compatible)

Rating:

90% of 100

SKU: DFR0063 Brand: DFRobot

This is another great LCD display compatible with Gadgeteer modules from DFRobot. With limited pin resources, your project will quicly run out of resources using normal LCDs. With this I2C interface LCD module, you only need 2 lines (I2C)to display the information.If you already have I2C devices in your project, this LCD module actually cost no more resources at all. The address can be set from 0x20-0x27.Fantastic for Arduino or gadgeteer based projects.

$21.40 AUD, inc GST

$19.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 29th of Jul

Quantity Discounts:

10+ $18.67 (exc GST)
25+ $18.09 (exc GST)

Note: This device does not come with the pictured cable, though it can be added to your cart by visiting its product page!

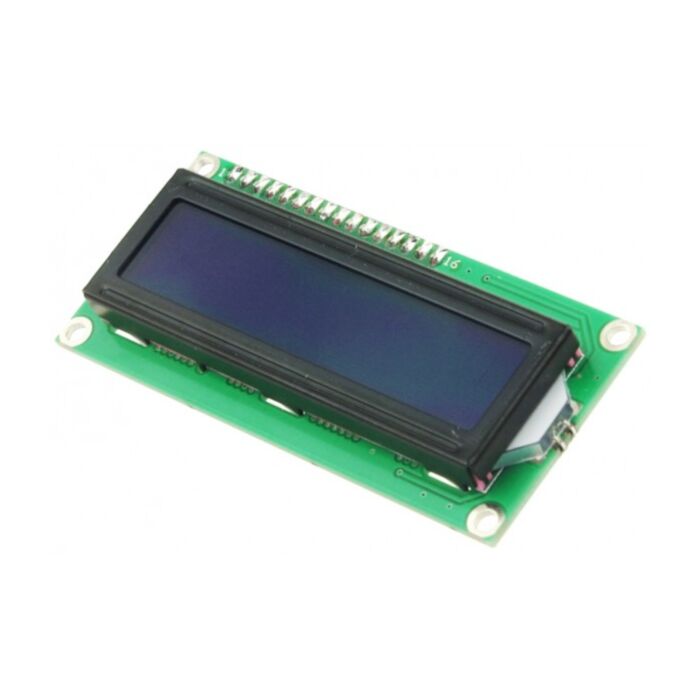

This LCD screen is a 16x2 character LCD display with an I2C interface. It features two rows for displaying text, with each row capable of displaying up to 16 characters. The white characters will be displayed on a blue background, providing a clear and visually appealing display.

In traditional Arduino LCD display projects, there are often limitations in terms of available pins, especially when using Arduino Uno. Additionally, wiring and connections can become quite complex. To address these issues, this LCD display utilizes the I2C communication interface. This means that it only requires 4 pins to connect the LCD display, including VCC, GND, SDA, and SCL. By adopting the I2C interface, we can save at least 4 digital/analog pins on the Arduino, making the project's connections simpler and more convenient.

All connectors are of the standard XH2.54 (breadboard type), allowing you to directly use jumper wires for your connections.

To avoid the conflict of I2C addresses with other I2C devices, such as ultrasonic sensors, IMUs, accelerometers, and gyroscopes, the I2C address of the module is configurable from 0x20-0x27. This allows you to select a suitable address based on your project requirements, ensuring that address conflicts are avoided.

This LCD display also features adjustable contrast. By manually adjusting the contrast using a potentiometer on the back of the board, you can optimize the display effect based on the environment and personal preferences, ensuring that characters are clear and easily visible.

Specification

I2C Address:0x20-0x27(0x20 default)
Back lit (Blue with white char color)
Supply voltage: 5V
Interface:I2C/TWI x1,Gadgeteer interface x2
Adjustable contrast
Size:82x35x18 mm

Shipping List

IIC LCD1602(Gadgeteer Compatible) (1 unit)

Documents

This product is listed in:

Displays & Screens>Character
